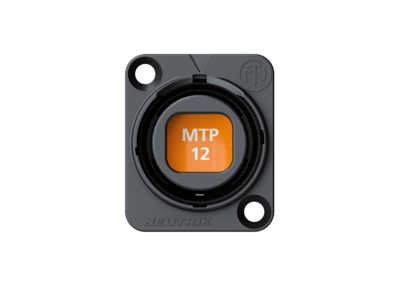

NO12FDW-A

The rear compatibility of opticalCON MTP® chassis fitting with standard MTP® (ELITE male) breakout cable allows easy adaptation to fiber standard connectors such as LC, SC, ST. The approved dust shutter ensures high mating cycles and minimal maintenance.

Features & Benefits

Ruggedized and dirt-protected 12-channel fiber optic connection system
For point-to-point multichannel routing
Laser protective metal shutter seals dust proof with two-component rubber gasket
IP65 ingress protection in mated condition with SCDP-*
Accommodates standard MTP^® ELITE male connectors on the rear for simple installation
Color coding with SCDP-* according to ANSI/TIA-568.3-D Standard
Multi-mode - black
Single-mode APC - green

Downloads

3D Ansicht NO12FDW-A

stp - 1.91 MB

Strichzeichnung NO12FDW-A

pdf - 259.8 KB

Strichzeichnung NO12FDW-A

dxf - 14.23 MB

reference-projects---opticalcon

pdf - 4.96 MB

bda-350---opticalcon-mtp-handling-instruction-v2

pdf - 3.48 MB

technical-paper---opticalcon-mtp

pdf - 1.57 MB

16-103_neutrik_white-paper-opticalcon-mtp

pdf - 4.31 MB

NEUTRIK opticalCON Guide – NF05 V30 – 202410

pdf - 43.46 MB

Technical Information

Product
Title	NO12FDW-A
Gender	female

Mechanical
Insertion force	< 45 N
Withdrawal force	< 45 N
Lifetime (typ.)	2500 mating cycles
Locking force	1000 N
Wiresize
Locking device	Push-Pull
Mounting direction	Front mounting
Chassis shape	D

Environmental
Temperature range	-40 °C to +75 °C
Protection class	IP65 in mated condition in combination with SCDP-*

Optical
Insertion loss	< 0.9 dB / connection

Accessories

CAS-FOCD-ADV

Fiber optic cleaning kit

Breakout-Adapter-Kit
