Breakout Cable -NKOB12M-A-0-1 MTP APC  - 202310012 24-MTP-MTO-Fanout-male-elite-Cable NKOB48M-A-0-x - 20231002

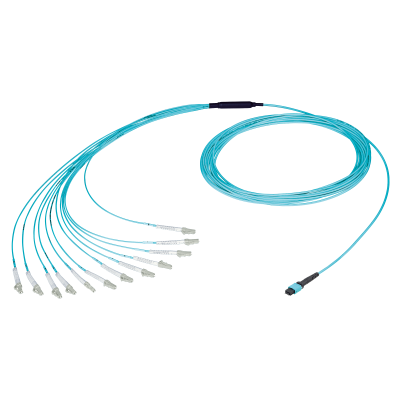

Breakout Cable -NKOB12M-A-0-1

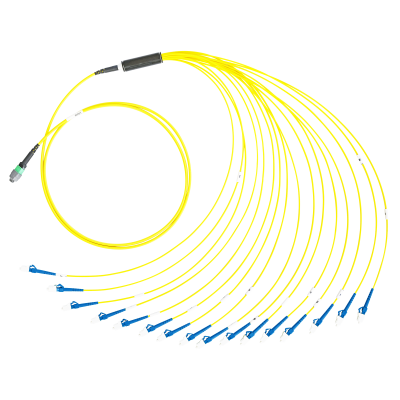

MTP APC  - 202310012

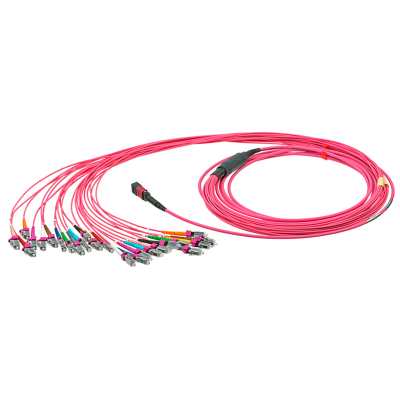

24-MTP-MTO-Fanout-male-elite-Cable

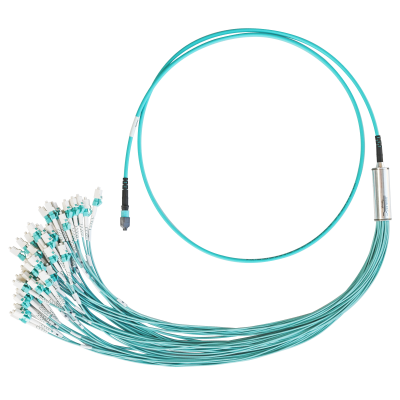

NKOB48M-A-0-x - 20231002
1/4
neutrik-fr / Produits / MTP® Breakout Cable

MTP® Breakout Cable

Download Data Sheet

High performance MTP® breakout cable for permanent and temporary installations. Standard premium grade A LCs (single-mode PC; multimode PC) guarantee low insertion loss values. Fan-outs for easy fiber breakout to any standardized LC-connections.

Features & Benefits
  • Low loss breakout cable
  • Grade A premium ferrules
  • Standard breakout connector: LC[PC]
  • More breakout connector types available upon request
  • High performance USCONEC Elite® Male MTP ferrule
  • Interferometer measurement to inspect ferrule geometry
Downloads
Drawing MTP12 fanout cable
pdf - 69.85 KB
Drawing MTP16 fanout cable
pdf - 75.36 KB
Drawing MTP 24 fanout cable
pdf - 70.34 KB
Drawing MTP48 fanout cable
pdf - 75.11 KB
reference-projects---opticalcon
pdf - 4.96 MB
NEUTRIK opticalCON Guide – NF05 V30 – 202410
pdf - 43.46 MB

Technical Information

Product
Title MTP® breakout cable
Environmental
Temperature range -20 °C to +70 °C
Optical
Insertion loss Please see individual datasheet (Downloads)
Optical connector MTP® Male SM [APC] to LC [PC]
MTP® Male MM [PC] to LC [PC]
Optical wiring Method A
Mobile cable
Outer diameter MTP®12: 3,0mm (approx.)
MTP®16: 3,5mm (approx.)
MTP®24: 3,8mm (approx.)
MTP®48: 4,8mm (approx.)
Jacket material LSZH/OFNP/PVC
Core diameter Multimode 50 µm
Singlemode 9 µm
Cladding diameter 125 µm
Number of fibers 12, 16, 24, 48
Accessories
NO12FDW-A - opticalCON MTP 12 ADVANCED CHASSIS CONNECTOR_topview.png
NO12FDW-A

The rear compatibility of opticalCON MTP® chassis fitting with standard MTP® (ELITE male) breakout cable allows easy adaptation to fiber standard connectors such as LC, SC, ST.

audio
NO16FDW-A - opticalCON MTP 16 ADVANCED CHASSIS CONNECTOR_topview.png
NO16FDW-A

MTP® 16 chassis fitting with standard MTP® 16 (ELITE male with 20 N springforce) breakout cable

NO24FDW-A - opticalCON MTP 24 ADVANCED CHASSIS CONNECTOR_topview.png
NO24FDW-A

opticalCON MTP® 24 chassis fitting with standard MTP® 24 (ELITE male with 20 N springforce) breakout cable

NO48FDW-A - opticalCON MTP 48 ADVANCED CHASSIS CONNECTOR_topview.png
NO48FDW-A

MTP® 48 chassis fitting with standard MTP® 48 (ELITE male with 20 N springforce) breakout cable

CAS-FOCD-ADV

Fiber optic cleaning kit

audio
CAS-FOMD

Fiber Optic Measurement Devices

Ordering Information
Product Code                          DescriptionFrom connector                       To connector             FibertypeSplit-Length
NKOB12M-A-0-*MTP®12 Breakout cable MMMTP®12 MM[PC] Male12x LC[PC]Multimode61 cm
NKOB12SA-A-0-*MTP®12 Breakout cable SMMTP®12 SM[APC] Male12x LC[PC]Singlemode61 cm
NKOB16SA-A-0-*MTP®16 Breakout cable SMMTP®16 SM[APC] Male12x LC[PC]Singlemode100 cm
NKOB24M-A-0-*MTP®24 Breakout cable MMMTP®24 MM[PC] Male24x LC[PC]Multimode100 cm
NKOB24SA-A-0-*MTP®24 Breakout cable SMMTP®24 SM[APC] Male24x LC[PC]Singlemode100 cm
NKOB48M-A-0-*MTP®48 Breakout cable MMMTP®48 MM[PC] Male48x LC[PC]Multimode100 cm
