NO24FDW-A

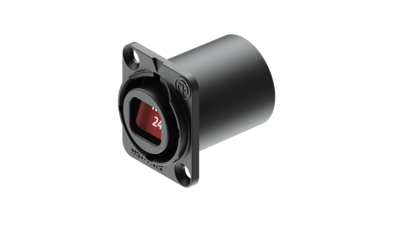

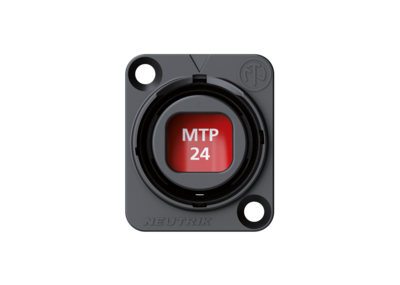

The rear compatibility of opticalCON MTP® 24 chassis fitting with standard MTP® 24 (ELITE male with 20 N springforce) breakout cable allows easy adaptation to fiber standard connectors such as LC, SC, ST. The approved dust shutter ensures high mating cycles and minimal maintenance.
- Ruggedized and dirt-protected 24-channel fiber optic connection system
- For point-to-point multichannel routing
- Laser protective metal shutter seals dust proof with two-component rubber gasket
- IP65 ingress protection in mated condition with SCDP-*
- Accommodates standard MTP® ELITE MALE with 20 N springforce connectors on the rear for simple installation
Technical Information
| Product | |
|---|---|
| Title | NO24FDW-A |
| Gender | female |
| Mechanical | |
|---|---|
| Insertion force | < 45 N |
| Withdrawal force | < 45 N |
| Lifetime (typ.) | 2'500 mating cycles |
| Locking force | 1'000 N |
| Wiresize | |
| Locking device | Push-Pull |
| Mounting direction | Front mounting |
| Chassis shape | D |
| Environmental | |
|---|---|
| Temperature range | -40 °C to +75 °C |
| Protection class | IP65 in mated condition in combination with SCDP-* |
| Optical | |
|---|---|
| Insertion loss | < 0.9 dB / connection |
Fiber optic cleaning kit
Panneau mural rack 19'' 1unité (à équiper avec NZPFD)
Panneau mural 19'' 3 unités
Panneau mural pour 8 chassis série D. Angle 30°
La facade NZPFD peut etre équipée avec un chassis Opticalcon Duo, Quad ou MTP (ou série D)
Le panneau NZPFD-2 peut recevoir 2x chassis opticalcon DUO, Quad ou MTP (ou série D).
*** DISCONTINUED *** Panel frame plate opticalCON for one opticalCON DUO or QUAD chassis and two SC duplex chassis connectors
Panel frame plate opticalCON for one opticalCON DUO or QUAD chassis and four SC simplex or four Single E2000 feedthroughs
*** DISCONTINUED *** Panel frame plate opticalCON for one opticalCON DUO or QUAD chassis and four ST chassis connectors
Allows cost effective and low space loops in fiber optic networks
Soft plastic cover for the rear ends of several D-size chassis connectors.
Sealing gasket for D-shape chassis connectors, 6 colors
Rugged, all metal sealing cover for opticalCON chassis connectors
Rugged rubber sealing cover for opticalCON chassis connectors
Spring-loaded sealing cover

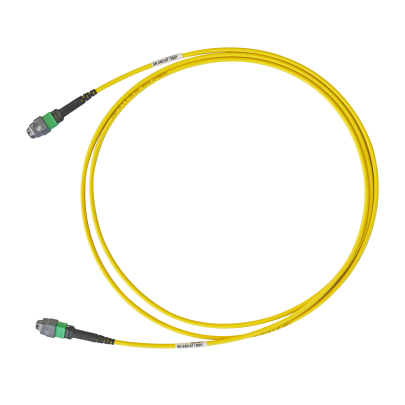

High performance MTP® patch cable to connect the rear side of the opticalCON MTP® chassis connectors. Elite®male ferrules guarantee low insertion loss and optimized optical return loss values.

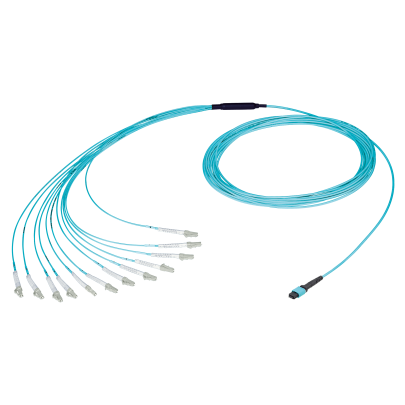

High performance MTP® breakout cable for permanent and temporary installations. Standard premium grade A LCs (single-mode PC; multimode PC) guarantee low insertion loss values. Fan-outs for easy fiber breakout to any standardized LC-connections.
