NZPF3RU

Download Data Sheet

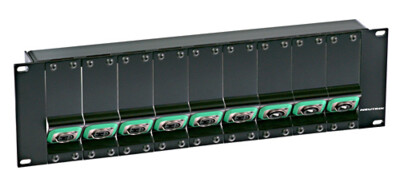

Panneau mural 19'' 3 unités pour 9 facades NZPFD ou NZPFD-2 ou NZPBP

Features & Benefits

Space saving design, ideal for cramped rack applications such as OB truck I/O panels
Best cable bend protection for mated cables due to 45° angled outlet position
Frame can be equipped with different plates (see accessories)

Downloads

pdf - 679.85 KB

stp - 254.98 KB

reference-projects---opticalcon

NEUTRIK opticalCON Guide – NF05 V30 – 202410

opticalcon-audio--video--lighting-application

pdf - 524.47 KB

opticalcon-broadcast-application-sng_eng-and-studio-routing

pdf - 468.65 KB

Accessories

Facade vierge pour NZPF1RU ou NZPF3RU

La facade NZPFD peut etre équipée avec un chassis Opticalcon Duo, Quad ou MTP (ou série D)

Le panneau NZPFD-2 peut recevoir 2x chassis opticalcon DUO, Quad ou MTP (ou série D).

*** DISCONTINUED *** Panel frame plate opticalCON for one opticalCON DUO or QUAD chassis and two SC duplex chassis connectors

Panel frame plate opticalCON for one opticalCON DUO or QUAD chassis and four SC simplex or four Single E2000 feedthroughs

*** DISCONTINUED *** Panel frame plate opticalCON for one opticalCON DUO or QUAD chassis and four ST chassis connectors

*** DISCONTINUED *** Panel frame plate opticalCON for one opticalCON DUO or QUAD chassis and two E2000 compact chassis connectors

powerMONITOR Rack Solution

*** DISCONTINUED *** to mount in a Neutrik panel frame
