CAS-FOCD-ADV

Download Data Sheet

Fiber optic cleaning kit

Downloads
NEUTRIK opticalCON Guide – NF05 V30 – 202410
pdf - 43.46 MB
Accessories
audio

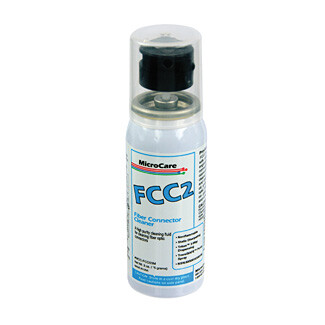

FOCD-CF

Consumable: Fiber optic cleaning fluid (non flammable)
audio

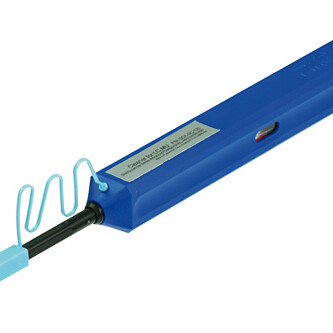

FOCD-DC125

Consumable: 1.25 mm DRY cleaner
audio

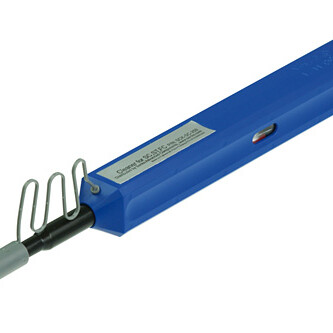

FOCD-DC250

Consumable: 2.5 mm DRY cleaner
audio

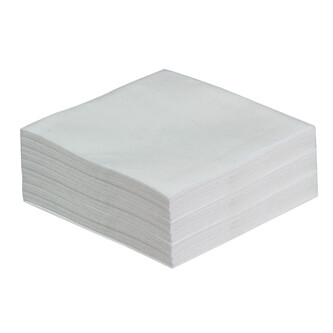

FOCD-DW

Consumable: Lint-free dry wipes for fiber cleaning

FOCD-DCM

DRY Cleaner MTP® , cleaning brush for guidance holes

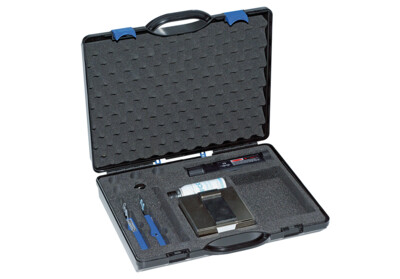

Fiber optic cleaning kit content
  • Case
  • Hand microscope (200x magnification)
  • opticalCON microscope adapter (allows microscopical front surface inspection of opticalCON DUO, opticalCON QUAD and LC connectors)
  • 2.5 microscope adapter (for microscopical front surface inspection of 2.5 mm ferrules as used on ST, SC and FC connectors)
  • opticalCON cleaning box (contains lint-free wipes, device is optimized for opticalCON fiber cleaning)
  • 1.25 mm DRY cleaner (for opticalCON chassis connector cleaning; LC front surface dry cleaning possible)
  • 2.5 mm DRY cleaner (for ST, SC and FC feedthrough connector cleaning; cable connector front surface cleaning possible)
  • Fiber optic cleaning fluid (non flammable)
  • The consumable material can be reordered.


The CAS-FOCD-ADV has additional space to upgrade the cleaning kit with MTP® dry cleaner FOCD-DCM and advanced measuring equipment like the handy PM-215 Pocket Optical Power Meter with the appropriate Light Source from OPTOKON.
