SCDX geschlossen SCDX assembly

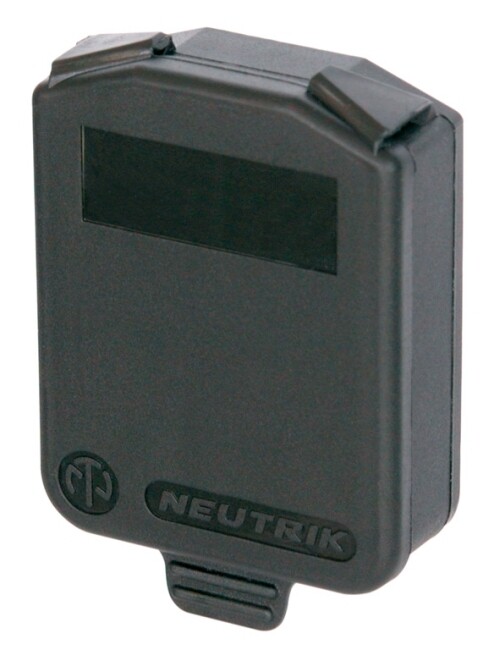

SCDX geschlossen

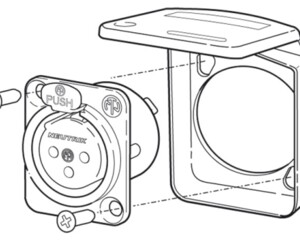

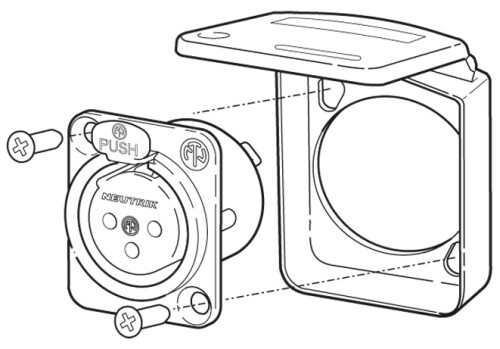

SCDX assembly
1/2
neutrik-fr / Produits / SCDX

SCDX

Download Data Sheet

This hinged cover seals D-size chassis connectors from water, dust and dirt in unmated condition according to IP42. It is available in different colors.

SCDX     –  black (if used with opticalCON, black indicates multi-mode)
SCDX-5  –  green (if used with opticalCON, green indicates single-mode APC)
SCDX-6  –  blue (if used with opticalCON, blue indicates single-mode PC)
SCDX-9  –  white (e.g. walloutlet)

Suitable for:
XLR D Series female
XLR D Series male
1/4" Jacks D Series
speakON NL2M* and NL4M*
powerCON 20 A Series NAC3MPA* and NAC3MPB*
powerCON TRUE1 NAC3MPX
USB NAUSB-W*
HDMI NAHDMI-W*
D-SUB NADB*
Firewire NA1394-6-W*
etherCON A&B Series
etherCON D Series
etherCON CAT6 Chassis Connectors
BNC D Series
Phono (RCA) Chassis Connectors

Downloads
scdx-2
pdf - 30.17 KB
scdx-3
dxf - 250.13 KB
3-D SCDX
stp - 135.41 KB
expertise-brief-scdx-en
pdf - 95.1 KB

Technical Information

Product
Title SCDX
Mechanical
Wiresize
Material
Sealing cover PP-R
Environmental
Flammability UL 94 HB
Temperature range -30° to +80 °C
