NC3MXCC
neutrik-fr / Produits / NC3MXCC

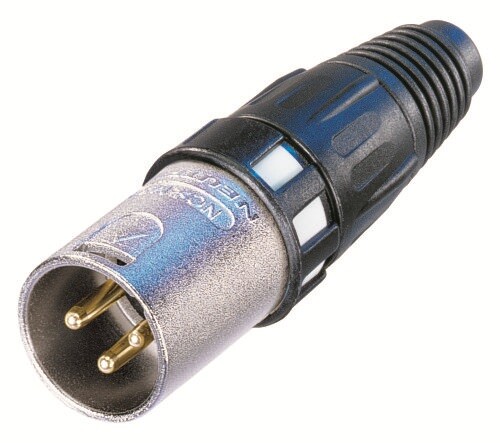

NC3MXCC

Download Data Sheet

3 pole male cable connector, RF-protected, gold contacts

Cable O.D.: 5.4 - 6.2 mm
Crimp Size Shield: 6.5 mm (hex)

The XCC XLR cable connector Series  with circumferential shield contact provides excellent RF-protection to transmit digital audio signals most efficient and reliable. This XLR features a coaxial ground spring and a coaxial hex crimp ferrule at the cable entrance for proper and reliable transition of the shield to the shell.

Features & Benefits
  • 3 pole cable connector with a circumferential shield contact for best EMI protection
  • XCCR coding ring to indicate digital AES signals included
  • Rugged zinc diecast shell, long lasting and durable
  • Chuck type strain relief system for secure clamping of cables
  • Boot with rubber gland gives high protection against bending stresses
Downloads
nc3mxcc-2
pdf - 434.24 KB
nc3mxcc-3
dxf - 26.82 KB
BDA 106 - NC3MXCC - Male XLR Cable Connector
pdf - 2.22 MB
01 NEUTRIK Section XLR Connectors PG EN 202202-V23_opt
pdf - 3.6 MB

Technical Information

Product
Title NC3MXCC
Connection Type XLR
Gender male
Electrical
Capacitance between contacts ≤ 4 pF
Contact resistance ≤ 3 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 16 A
Rated voltage < 50 V
Shielding effectiveness > 55 dB @ 1.3 GHz
Mechanical
Cable O.D. 5.4 - 6.2 mm
Crimp size 6,47 Hex crimp (shield) acc. IEC 60803 (die designation E)
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize max. 2.5 mm²
Wiresize max. 14 AWG
Wiring Solder contacts
Locking device Latch lock
Material
Boot Polyurethan
Coding Ring PA 6 15% GR
Contact plating 0.2 µm Au hard alloy over 2 µm Ni
Contacts Brass (CuZn39Pb3)
Crimp ferrule CuZn39Pb3, Ni plated
Insert Polyamide (PA66)
Locking element Zinc diecast (ZnAl4Cu1)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Strain relief Polyacetal (POM)
Circumferential ground spring CuSn6, Ni plated
Environmental
Approvals UL
Flammability UL 94 V-0
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
Accessories
audio

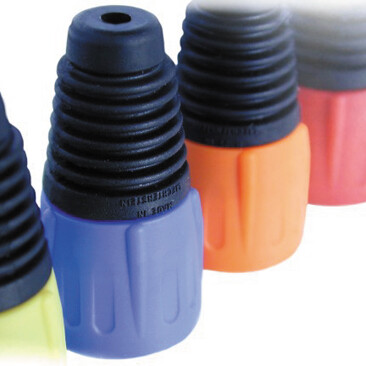

BSX-*

Colored bushings

video

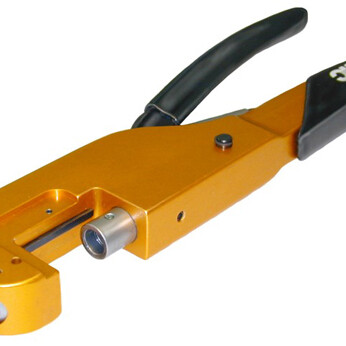

HX-BNC

Crimp tool, frame ATTENTION: Suitable dies are DIE-BNC-*

video

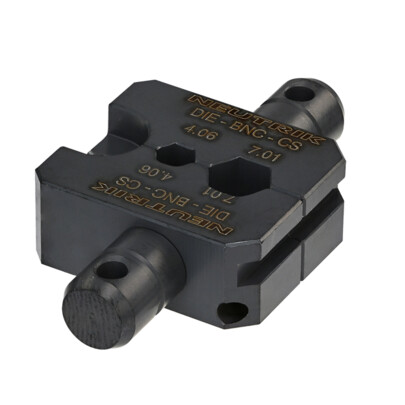

DIE-BNC-PG

Crimp tool die for HX-BNC Pin crimping: 1.6 mm Shield and jacket: HEX crimp 6.47 mm (A), 5.00 mm (B)

HX-R-BNC

Crimp tool, frame ATTENTION: Suitable dies are DIE-R-* and DIE-R-BNC*

video
DIE-R-BNC-PG

Crimp tool die for HX-R-BNC Pin crimping: 1.60 mm Shield and jacket: HEX crimp 6.47 mm (A), 5.00 mm (B)
