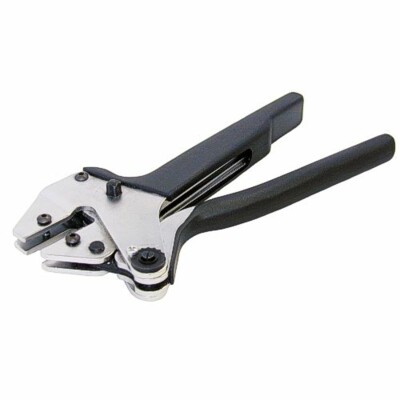

HX-R-BNC
neutrik-fr / Produits / HX-R-BNC

HX-R-BNC

Download Data Sheet

Crimp tool, frame

ATTENTION: Suitable dies are DIE-R-* and DIE-R-BNC*

Technical Information

Product
Title HX-R-BNC
Mechanical
Wiresize
Accessories
industrial

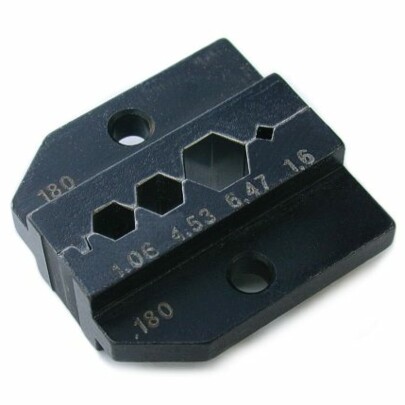

DIE-R-BNC-PDC

Crimp tool die for HX-R-BNC Pin crimping: 1.60 mm Shield and jacket: HEX crimp 6.47 mm (A), 4.53 mm (B), 4.06 mm (C)

video

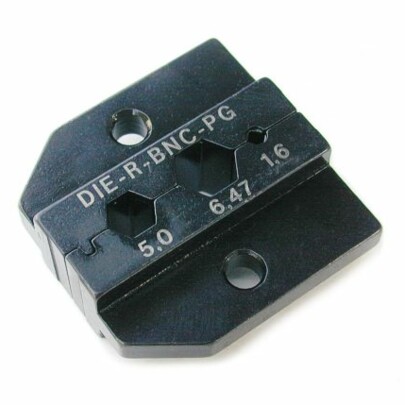

DIE-R-BNC-PG

Crimp tool die for HX-R-BNC Pin crimping: 1.60 mm Shield and jacket: HEX crimp 6.47 mm (A), 5.00 mm (B)

audio

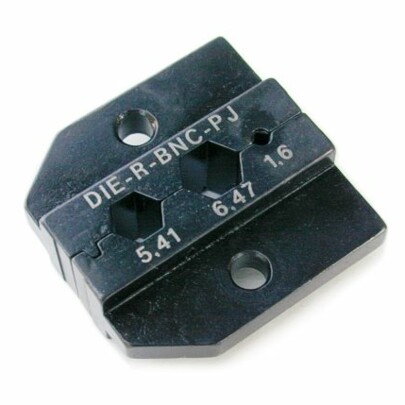

DIE-R-BNC-PJ

Crimp tool die for HX-R-BNC Pin crimping: 1.60 mm Shield and jacket: HEX crimp 6.47 mm (A), 5.41 mm (B)

industrial

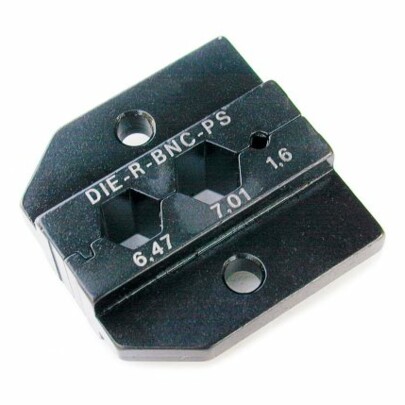

DIE-R-BNC-PS

Crimp tool die for HX-R-BNC Pin crimping: 1.60 mm Shield and jacket: HEX crimp 6.47 mm (A), 7.01 mm (B)

video

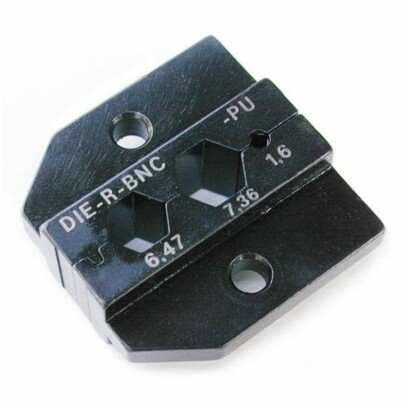

DIE-R-BNC-PU

Crimp tool die for HX-R-BNC Pin crimping: 1.60 mm Shield and jacket: HEX crimp 6.47 mm (A), 7.36 mm (B)

video

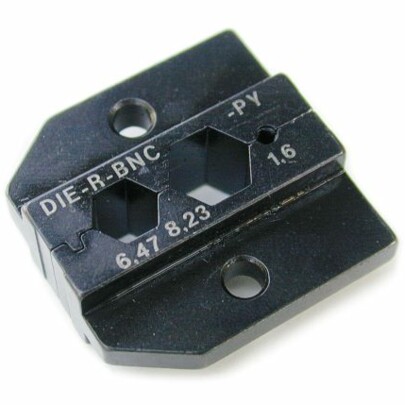

DIE-R-BNC-PY

Crimp tool die for HX-R-BNC Pin crimping: 1.60 mm Shield and jacket: HEX crimp 6.47 mm (A), 8.23 mm (B)

video

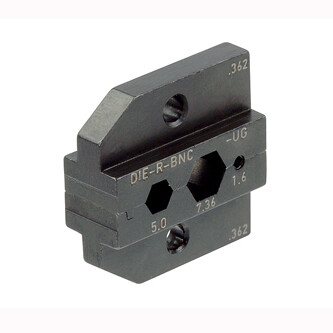

DIE-R-BNC-UG

Crimp tool die for HX-R-BNC Pin crimping: 1.60 mm Shield and jacket: HEX crimp 7.36 mm (A), 5.0 mm (B)

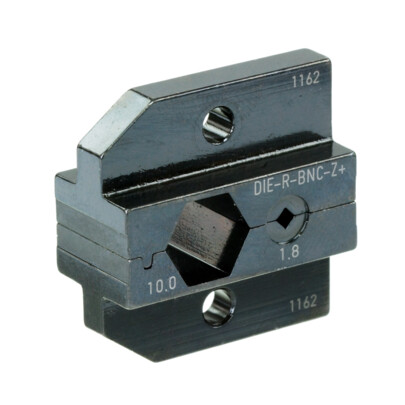

DIE-R-BNC-ZPLUS

Crimp tool die for HX-R-BNC Pin crimping: HEX 1.8 mm Shield and jacket: HEX 10.0 mm (A)

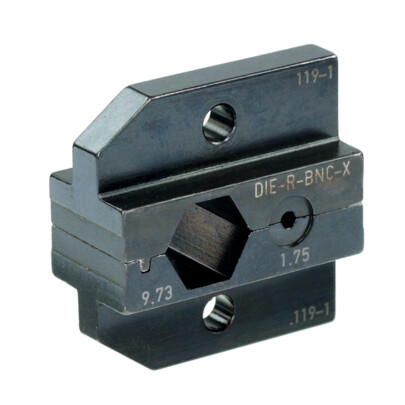

DIE-R-BNC-X

Crimp tool die for HX-R-BNC Pin crimping: HEX 1.75 mm Shield and jacket: HEX 9.73 mm (A)

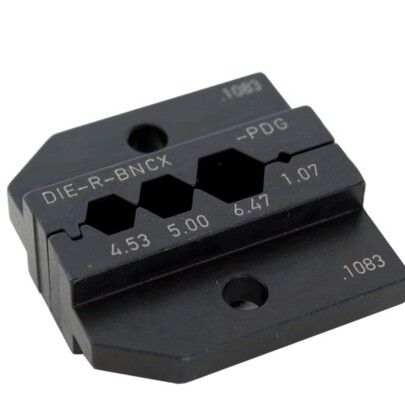

DIE-R-BNCX-PDG

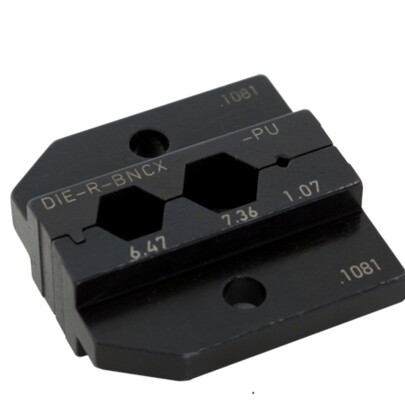

DIE-R-BNCX-PU

audio

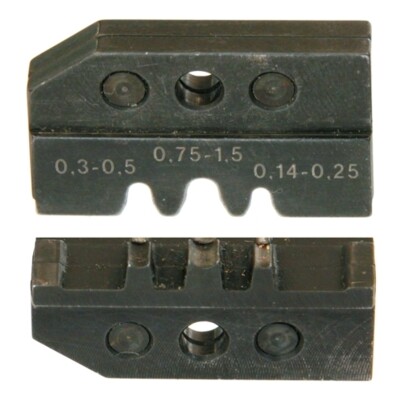

DIE-R-HA-1

Die for Crimp XLR XX-HA
