DIE-R-BNC-PU
neutrik-fr / Produits / DIE-R-BNC-PU

DIE-R-BNC-PU

Download Data Sheet

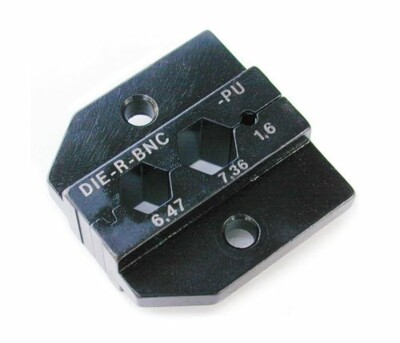

Crimp tool die for HX-R-BNC

Pin crimping: 1.60 mm
Shield and jacket: HEX crimp 6.47 mm (A), 7.36 mm (B)

Downloads
die-r-bnc-pu-2
pdf - 31.42 KB
die-r-bnc-pu-3
dxf - 12.29 KB

Technical Information

Product
Title DIE-R-BNC-PU
Mechanical
Crimp size 6.47, 7.36 Hex crimp (shield) acc. IEC 60803 (die designation E), MIL22520/5-41(A)
Crimp size (pin) 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
Wiresize
Accessories
HX-R-BNC

Crimp tool, frame ATTENTION: Suitable dies are DIE-R-* and DIE-R-BNC*
