DIE-R-BNC-X
neutrik-fr / Produits / DIE-R-BNC-X

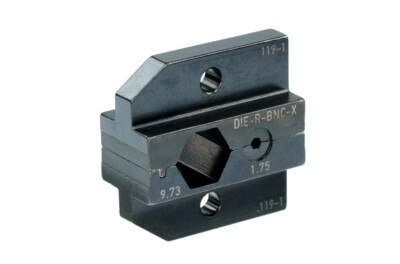

DIE-R-BNC-X

Download Data Sheet

Crimp tool die for HX-R-BNC

Pin crimping: HEX 1.75 mm
Shield and jacket: HEX 9.73 mm (A)

Downloads
die-r-bnc-x-1
dxf - 139.52 KB
die-r-bnc-x-2
pdf - 19.29 KB

Technical Information

Product
Title DIE-R-BNC-X
Mechanical
Crimp size 9,73 Hex crimp (shield) acc. IEC 60803 (die designation H)
Crimp size (pin) 1,75 Hex crimp (pin) acc. IEC 60803 (die designation X)
Wiresize
Accessories
HX-R-BNC

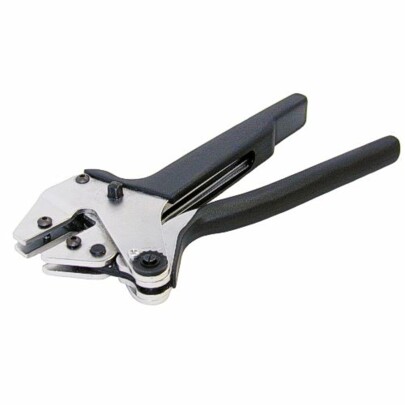

Crimp tool, frame ATTENTION: Suitable dies are DIE-R-* and DIE-R-BNC*
