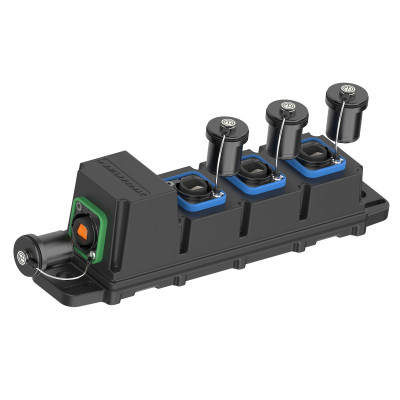

opticalBAR
A compact, rugged fiber breakout solution designed for professional applications where flexibility, reliability, and durability matter. With an IP65 rating when mated, the opticalBAR enables smart fiber distribution in the most demanding environments.
Fully compatible with the opticalCON® ADVANCED series, the opticalBAR is available in the following core variants:
| Product Code | From chassis | To chassis | Fibertype |

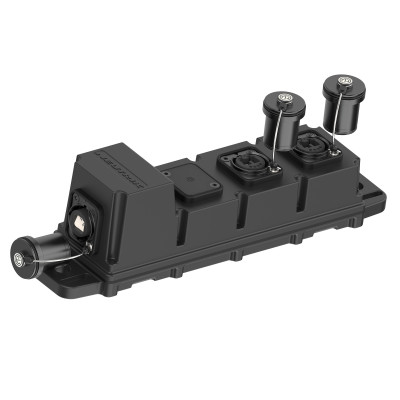

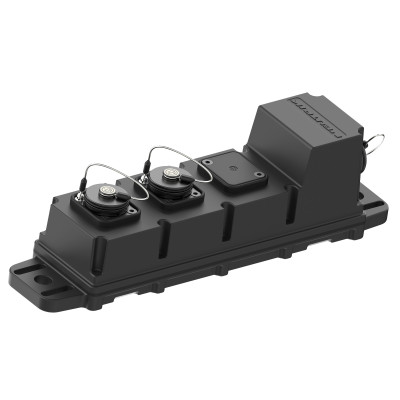

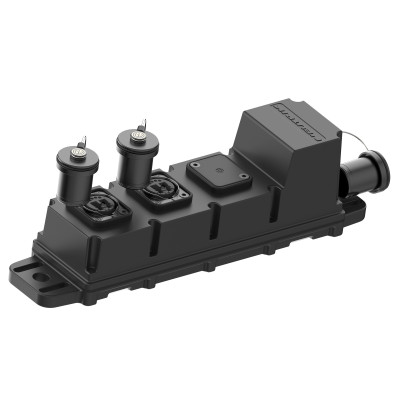

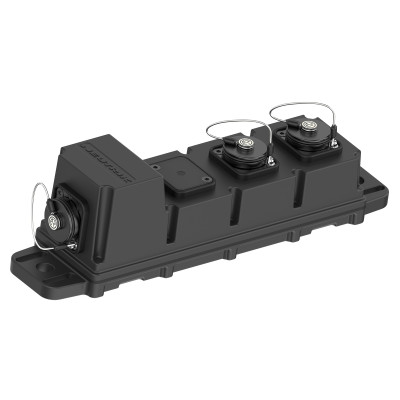

| NO4M-OC-B2NO2-A | 1x opticalCON® QUAD MM | 2x opticalCON® DUO MM | Multimode |
| NO4S-OCB2NO2-A | 1x opticalCON® QUAD SM[PC] | 2x opticalCON® DUO SM[PC] | Singlemode |
| NO4SA-OCB2NO2-A | 1x opticalCON® QUAD SM[APC] | 2x opticalCON® DUO SM[APC] | Singlemode |

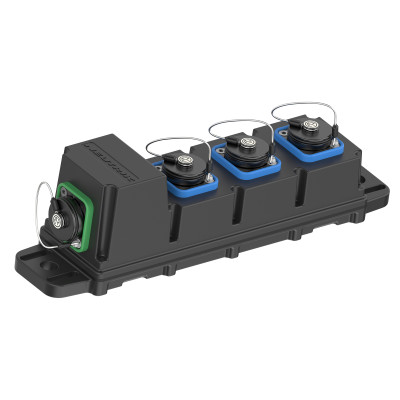

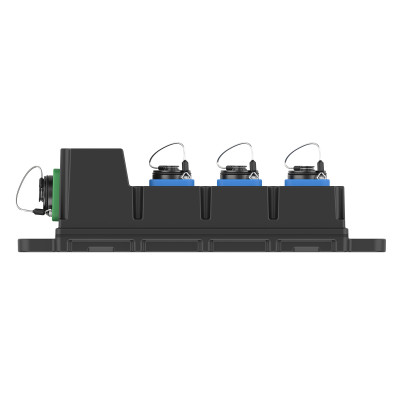

| NO12M-OCB3NO4-A | 1x opticalCON® MTP®12 MM | 3x opticalCON® QUAD MM | Multimode |

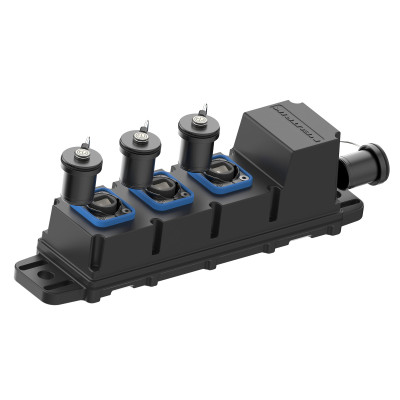

| NO12SA-OCB3NO4-A | 1x opticalCON® MTP®12 SM[APC] | 3x opticalCON® QUAD SM[PC] | Singlemode |
- Flexible mounting options: Mounting holes for screws, Velcro straps and pegs; Truss clips (available soon)
- Outdoor Ready: IP65 rated in mated conditions
- Full compatibility with our opticalCON® ADVANCED products
Technical Information
| Product | |
|---|---|
| Title | opticalBAR |
| Connection Type | Breakout Adapter |
| Gender | female |
| Mechanical | |
|---|---|
| Insertion force | < 45 N |
| Withdrawal force | < 45 N |
| Lifetime (typ.) | 1000 mating cycles |
| Locking device | Push-Pull |
| Environmental | |
|---|---|
| Temperature range | -25 °C to +70°C |
| Protection class | IP65 (in mated condition) |
| Optical | |
|---|---|
| Insertion loss | LC < 0.4 dB per connection MTP® < 0.9 dB per connection |
| Optical connector | LC or MTP® |
Outil de maintenance pour le connecteur de châssis opticalCON DUO NO2-4FDW-*A
Outil de maintenance pour le connecteur de châssis opticalCON MTP® NO12FDW-A / NO24FDW-A

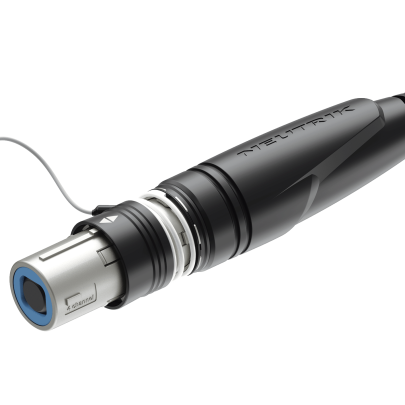

Assembled, rugged and lightweight 4-channel mobile field cable, excellent cable retention due to aramid yarn, black PUR outer jacket, available in single and multi mode (PC or APC).
Service Tool for the opticalCON QUAD chassis connector NO4FDW-A

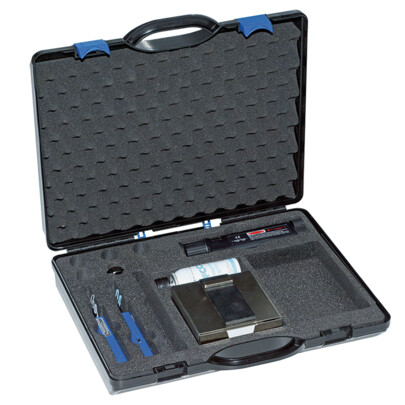

Fiber optic cleaning kit

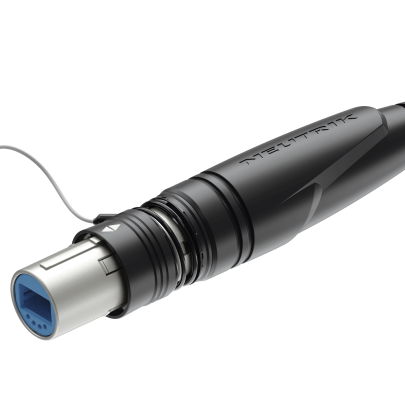

Assembled 2 fibers rugged and lightweight mobile field cable, excellent cable retention due to aramid yarn, black PUR outer jacket, available in multi- and single mode (PC or APC), military approved.

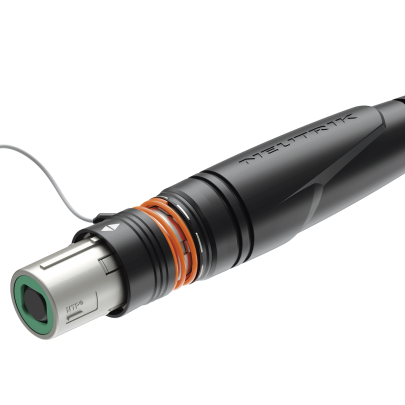

Assembled, rugged and lightweight 12-channel mobile field cable, excellent cable retention due to aramid yarn, black PUR outer jacket, available in single (APC) and multi mode (PC).
