opticalCON DUO

Assembled 2 fibers rugged and lightweight mobile field cable, excellent cable retention due to aramid yarn, black PUR outer jacket, available in multi- and single mode (PC or APC), military approved. Ideal for audio and broadcast networks.

The opticalCON DUO cable connector accommodates a standard optical LC-Duplex connector in a ruggedized and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptional well protected against dirt and dust by an automatically operated sealing cover. The cable connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and is packed either in a case, on drum or airspool.

Features & Benefits

Ruggedized and dirt protected fiber optic connection system
Waterproof acc. to IP65 safety standard in mated condition
2-pole military approved robust and light weight mobile field cable with multi- or single mode fibers
opticalCON multimode fiber cables offer laser and bend optimized OM3 fibers
Accommodates standard optical LC-Duplex connectors
Cable connector features rugged all metal housing and heavy duty cable retention
Excellent dust and dirt protection due to automatic sealing shutter with silicone gasket
Reliable Push-Pull locking mechanism
Easy to clean, no special tools required

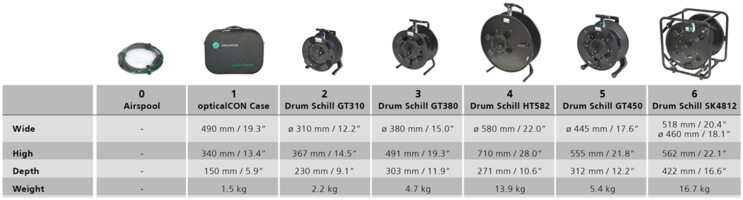

Available in different packaging versions

Downloads

3D Ansicht NO2_X-A STANDARD

stp - 3.68 MB

Strichzeichnung NKO2_-A

dxf - 8.42 MB

Strichzeichnung NKO2_-A

pdf - 368.92 KB

BDA 520 V2 - opticalCON DUO Handling Instruction

pdf - 3.7 MB

opticalcon-duo-technical-paper-v4

pdf - 2.31 MB

opticalcon-availability

pdf - 586.23 KB

reference-projects---opticalcon

pdf - 4.96 MB

NEUTRIK opticalCON Guide – NF05 V32 – 202506

pdf - 51.19 MB

opticalcon-audio--video--lighting-application

pdf - 524.47 KB

opticalcon-broadcast-application-ob-truck

pdf - 422.34 KB

NDS01 - opticalCON DUO ADVANCED

pdf - 347.49 KB

Technical Information

Product
Title	opticalCON DUO
Gender	male

Mechanical
Cable retention	500 N
Insertion force	< 45 N
Withdrawal force	< 45 N
Lifetime (typ.)	5000 mating cycles
Wiresize
Locking device	Push-Pull

Material
Boot	Rubber (EPDM)
Bushing	Zinc diecast (ZnAl4Cu1)
Insert	Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
Shell	Zinc diecast (ZnAl4Cu1)
Shell plating	Black chromium
Strain relief	Polyacetal (POM) (brass)

Environmental
Temperature range	-40°C to +75 °C
Protection class	in mated condition IP65

Optical
Insertion loss	< 0.5 dB / connection
Optical connector	LC-Duplex (PC and APC)
Optical wiringISO / IEC 11801	ISO / IEC 11801

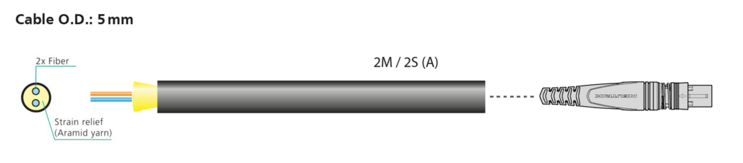

Mobile cable
Colour	black, matte
Core diameter	Singlemode 9 µm, Multimode 50 µm
Cladding diameter	125 µm
Comment	PUR
minimal bending radius	5 cm
Number of fibers	2
Cable retention	Aramid yarn
Weight	23 kg/km
Overal diameter	5 mm
