NAO2*-H1W-A

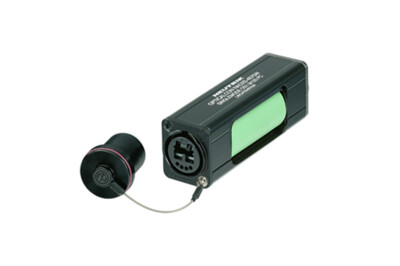

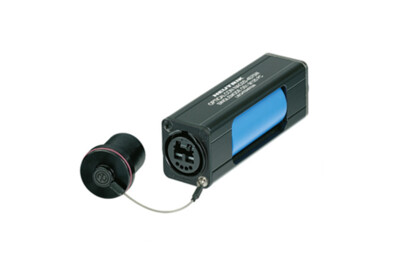

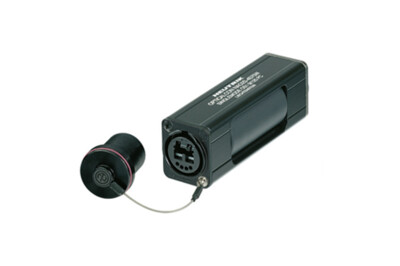

Weatherproof opticalCON DUO coupler (adapter) LC-Duplex for cable extensions with 4 copper wires (0.75 mm²).
 |
 |
 |
|
| Produkt | NAO2M-H1W-A | NAO2S-H1W-A | NAO2SA-H1W-A |
| Fiber Mode | multi-mode PC | single-mode PC | single-mode APC |
| Color Coding | Black | Blue | Green |
Downloads
Technical Information
| Product | |
|---|---|
| Title | NAO2*-H1W-A |
| Connection Type | Adapter |
| Gender | female |
| Electrical | |
|---|---|
| Contact resistance | < 7 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 2 GΩ (initial) |
| Rated current per contact | 6 - 10 A (Contact 1+4 10 A, Contact 2+3 6 A) |
| Rated voltage | < 50 V (1) |
| Mechanical | |
|---|---|
| Insertion force | < 45 N |
| Withdrawal force | < 45 N |
| Lifetime (typ.) | 1000 mating cycles |
| Wiresize | |
| Locking device | Push-Pull |
| Material | |
|---|---|
| Contact plating | 0.2 µm Au over 2 µm Ni |
| Contacts | Bronze (CuSn6) |
| Insert | Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR) |
| Shell | AlMgSi 0.5, black plated |
| Split sleeve | ceramics |
| Environmental | |
|---|---|
| Temperature range | -30 °C to +80 °C |
| Protection class | IP65 |
| Optical | |
|---|---|
| Insertion loss | < 0.4 dB / connection |
| Optical connector | LC-Duplex |
