Cable-Connector-Assembly-QUAD
neutrik-fr / Produits / opticalCON QUAD X-TREME

opticalCON QUAD X-TREME

Download Data Sheet

Assembled, 4-channel X-TREME cable offering a cut-proof and rodent resistant double jacket glass yarn armored cable construction. Excellent cable retention due to aramid yarn, black PUR outer jacket.

The opticalCON QUAD cable connector accommodates four PC optical channels based on conventional and proven LC connectivity protected by a ruggedized and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptional well protected against dirt and dust by an automatically operated sealing cover.

The cable connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and is packed either in a case, on drum or airspool.

Features & Benefits
  • opticalCON X-TREME cable for demanding applications like touring / rental or outdoor broadcast
  • opticalCON multi mode fiber cables offer laser and bend optimized OM3 fibers
  • Offers a cut-proof and rodent-resistant double-jacket, glass-yarn armored cable construction
  • Rugged 4-channel fiber optic connection system
  • For Point-to-Point multichannel routing
  • Innovative spherical shutter guarantees low maintenance
  • Dust and water resistant according to IP65 in mated condition



Downloads
3D Ansicht NO4_X-A XTREME
stp - 4.02 MB
Strichzeichnung NKO4_X-A
pdf - 316.56 KB
Strichzeichnung NKO4_X-A
dxf - 6.37 MB
opticalcon-audio--video--lighting-application
pdf - 524.47 KB
opticalcon-broadcast-application-ob-truck
pdf - 422.34 KB
NDS08 - opticalCON QUAD ADVANCED XTREME
pdf - 231.05 KB
BDA 522 V2 - opticalCON QUAD Handling Instruction
pdf - 3.55 MB
opticalcon-quad-technical-paper-v1
pdf - 1.52 MB
opticalcon-availability
pdf - 586.23 KB
reference-projects---opticalcon
pdf - 4.96 MB
NEUTRIK opticalCON Guide – NF05 V30 – 202410
pdf - 43.46 MB

Technical Information

Product
Title opticalCON QUAD X-TREME
Gender male
Mechanical
Cable retention 500 N
Insertion force < 45 N
Withdrawal force < 45 N
Lifetime (typ.) 5000 mating cycles
Wiresize
Locking device Push-Pull
Material
Boot Rubber (EPDM)
Bushing Zinc diecast (ZnAl4Cu1)
Insert Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Strain relief Polyacetal (POM) (brass)
Environmental
Temperature range -40 °C to +75 °C
Protection class in mated condition IP65
Optical
Fiber type
Multimode PC
Singlemode PC
Insertion loss < 0.45 dB / connection
Optical wiring ISO / IEC 11801
Mobile cable
Colour black, matte
Core diameter single mode 9 µm, multi mode 50 µm
Cladding diameter 125 µm
Comment PUR
minimal bending radius 9.2 cm
Number of fibers 4
Cable retention Aramid yarn
Weigth 82 kg/km
Overal diameter 9.2 mm
Outer shield coated glass yarn
Accessories
CAS-FOCD-ADV

Fiber optic cleaning kit

audio

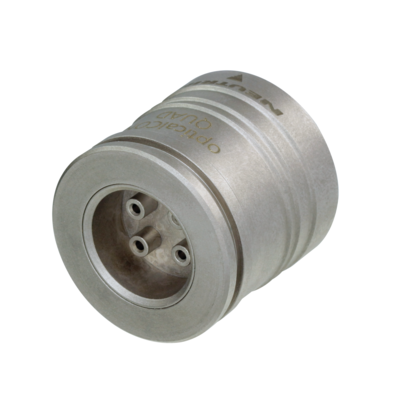

CAS-FOMD

Fiber Optic Measurement Devices

NAO4*W-A

Weatherproof opticalCON QUAD coupler (adapter) for cable extensions

NOR-*

Color coding ring for opticalCON cable and chassis connectors (SCNO-FDW-A)

SCNO*X-A

Rubber coated pollutant-protection cover for opticalCON cable connectors including front housing.

FOPS-SINGLE

The pulling sock simplifies the installation at a pulling force

FOPS-SPLIT

The pulling sock simplifies the installation at a pulling force.

FOCD-STQ

Cable cross section

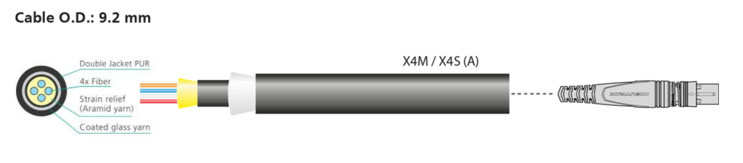

opticalCON QUAD X-TREME - cable cross section

Packaging options and max. cable length

opticalCON-DRUM-Packagin---013456

Cleaning

opticalCON QUAD logo

opticalCON QUAD logo

opticalCON Features

opticalCON Features
