opticalCON DUO SMPTE

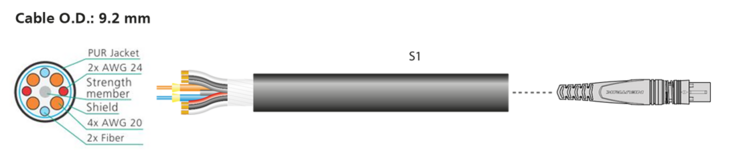

Pre-assembled SMPTE cable with 2 single-mode fibers (PC or APC), 4 copper pins, overall copperbraided shield and stainless steel strength member, strong black PUR outer jacket for abrasion resistance. Suitable chassis connector NO2-4FD-1(-A) offers a ground contact. Not compatible to SMPTE 304M standard. Suitable for indoor (studio) camera links considering specific conditions acc. to IEC 60664-1 like pollution degree 1, overvoltage category 1 and rated voltage. For detailed information ask for the White Paper "opticalCON @ SMPTE Indoor Applications". The opticalCON DUO SMPTE cable is suitable for outdoor applications up to 65V.

The opticalCON DUO cable connector accommodates a standard optical LC-Duplex connector in a ruggedized and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptional well protected against dirt and dust by an automatically operated sealing cover.
The cable connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and is packed either in a case, on drum or airspool.

Features & Benefits

Ruggedized and dirt protected fiber optic connection system
Waterproof acc. to IP65 safety standard in mated condition
Suitable for indoor (studio) camera links considering specific conditions acc. to IEC 60664-1 like pollution degree 1, overvoltage category 1 and rated voltage.
Suitable for outdoor applications 65V
Accommodates standard optical LC-Duplex connectors
Cable connector features rugged all metal housing and heavy duty cable retention
Excellent dust and dirt protection due to automatic sealing shutter with silicone gasket
Reliable Push-Pull locking mechanism
Easy to clean, no special tools required
Available in different packaging versions
Lockable with opticalCON DUO Chassis NO2-4FDW-A / NO2-4FDW-1-A
This product is intended and designed for use in combination with NEUTRIK brand connectors only.

Downloads

3D Ansicht NO2_X-A XTREME SMPTE H1

stp - 4.21 MB

Strichzeichnung NKO2_-A

pdf - 368.92 KB

Strichzeichnung NKO2_-A

dxf - 8.42 MB

BDA 520 V2 - opticalCON DUO Handling Instruction

pdf - 3.7 MB

opticalcon-duo-technical-paper-v4

pdf - 2.31 MB

opticalcon-duo-smpte

pdf - 234.11 KB

opticalcon-availability

pdf - 586.23 KB

reference-projects---opticalcon

pdf - 4.96 MB

NEUTRIK opticalCON Guide – NF05 V30 – 202410

pdf - 43.46 MB

CB Test Certificate SE-103019M1

pdf - 143.2 KB

Technical Information

Product
Title	opticalCON DUO SMPTE
Gender	male

Electrical
Contact resistance	< 7 mΩ
Dielectric strength	1,5 kVdc
Insulation resistance	> 10 GΩ (initial)
Mains	65V AC / 6A / 50Hz
	65V DC / 6A
Sense	50V AC / 3A / 50Hz
	50V DC / 3A
	When operating outside the intended connection frequency, the electronic and electrical devices must be tuned to each other including the transmission path. The Neutrik Group accepts no liability in this case.

Mechanical
Cable retention	500 N
Insertion force	< 45 N
Withdrawal force	< 45 N
Lifetime (typ.)	5000 mating cycles
Wiresize
Wiresize	2 x 24 AWG + 4 x 20 AWG
Locking device	Push-Pull

Material
Boot	Rubber (EPDM)
Bushing	Zinc diecast (ZnAl4Cu1)
Contacts	Brass (CuZn39Pb3)
Insert	Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
Shell	Zinc diecast (ZnAl4Cu1)
Shell plating	Black chromium
Strain relief	Polyacetal (POM) (brass)

Environmental
Temperature range	Operating temperature -40 °C to +75 °C by relative humidity 93%
Flammability	UL94 V-0
Protection class	in mated condition IP65
Certification according to	IEC 61984 :2008
	UL 1977 :2016
	CSA C22.2 No 182.3 :2016

Optical
Insertion loss	0.4 dB
Optical connector	LC-Duplex (PC/APC)
Optical wiring	ISO / IEC 11801

Mobile cable
Colour	black, matte
Core diameter	9 µm
Cladding diameter	125 µm
minimal bending radius	5.5 cm
Number of fibers	2
Cable retention	Crimp type
Strength member	Stainless Steel
Weigth	120 kg/km
Overal diameter	9.2 mm
