NLJ2MD-V
neutrik-fr / Produits / NLJ2MD-V

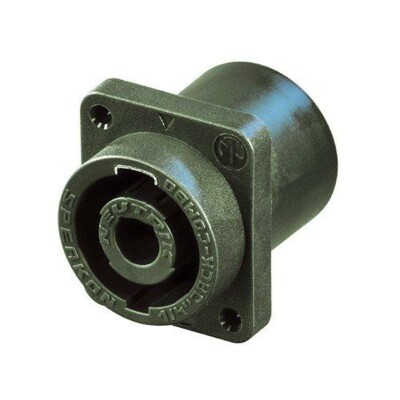

NLJ2MD-V

Download Data Sheet

*** DISCONTINUED ***
Direct replacement / successor: NLJ2MDXX-V

2 pole combination of speakON socket and 1/4" jack receptacle, vertical pcb mount, same pcb footprint and panel cut out as NL4MD-V

First speakON / jack hybrid panel mount connector combining the speakON chassis connector with a 1/4" 2 pole jack socket permitting connection using either type of plug. The speakON Combo mates with all 2- and 4-pole speakON cable connectors and 1/4" jack plugs utilizing 2 contacts.



Features & Benefits
  • Combined speakON D size receptacle and 1/4" jack
  • Save rack space and costs by combining 2 connectors in one housing
  • Mates with two types of connectors offering greater flexibility of interconnections
  • Rear panel mount
  • PA-wiring: 1+ is connected to Tip, 1- to Sleeve
Downloads
3-d-nlj2md-v
stp - 71.16 KB
nlj2md-v-1
pdf - 56.66 KB
nlj2md-v-2
dxf - 486.14 KB
03 Section speakON PG EN 202202-V23
pdf - 5.55 MB
speakon-flange-and-fastening-layout
pdf - 130.14 KB
À gauche
UL Certificate (ECBT2.E135070)

Technical Information

Product
Title NLJ2MD-V
Electrical
Contact resistance ≤ 3 mΩ (after lifetime)
Dielectric strength 4 kVdc (peak)
Insulation resistance > 1 GΩ (after dampheat)
Rated current per contact 15 A rms continuous (Speakon)
Rated current per contact 20 A audiosignal, duty cycle 50 % (Speakon)
Rated voltage 250 V ac
Dielectric strength 1/4' Jack 1.5 kV dc
Rated current per contact 1/4' Jack 15 A
Mechanical
Insertion force ≤ 20 N
Withdrawal force > 10 N
Lifetime > 5000 mating cycles
Wiresize
Wiring vertical PCB mount
Locking device Quick Lock
Mounting direction Rear mounting
Chassis shape D
Layout standard hole position, self tapping screw holes (A-Screw)
Material
Contact plating 4 µm Ag
Shell Polyamide (PA 6 30 % GR) green
Contacts Spring Copper (CuSn0.2) & Bronze (CuSn6)
Environmental
Approvals UL
Flammability UL 94 HB
Solderability Complies with IEC 68-2-20, Test Ta, Method 2
Temperature range -30 °C to +80 °C
Attention speakON is NOT to be used as an AC mains or power supply connector!
Accessories
CAS-DUMMY

The dummyPLUG case includes a mixed assortment of dummyPLUGs

audio
NDL

The dummyPLUG NDL for all 4 pole Neutrik speakON and powerCON chassis enables you to simplify cabling.

audio
SCDX

Hinged cover

audio
SCL

Dust protection cover for most speakON and powerCON chassis connectors

SCCD-W

Spring-loaded sealing cover
