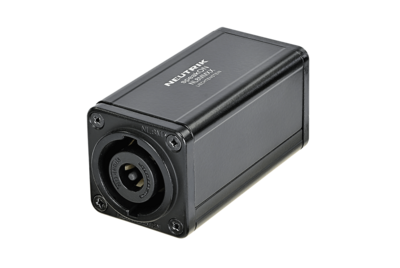

NL8MMXX
8 pole speakON feedthrough adapter for cable extensions
Technical Information
| Product | |
|---|---|
| Title | NL8MMXX |
| Connection Type | Adapter |
| Gender | male |
| Electrical | |
|---|---|
| Contact resistance | < 3 mΩ |
| Dielectric strength | 1.5 kVac |
| Insulation resistance | > 0.1 GΩ (after dampheat) |
| Rated current per contact | 25 A rms continuous |
| Rated voltage | 250 V ac |
| Attention | speakON is NOT to be used as an mains or power supply connector (AC / DC)! |
| Mechanical | |
|---|---|
| Lifetime | > 5000 mating cycles |
| Locking device | Quick Lock |
| Material | |
|---|---|
| Contact plating | Ag |
| Contacts | Copper Alloy |
| Shell | Zinc diecast, black chrome plated |
| Insert | Polyamide (PA 6.6) |
| Environmental | |
|---|---|
| Temperature range | -30 °C to +80 °C |
| Flammability | UL 94 V-0 |
