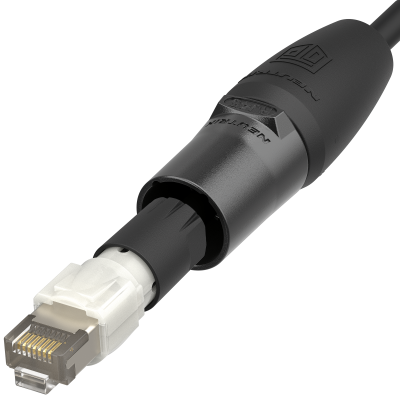

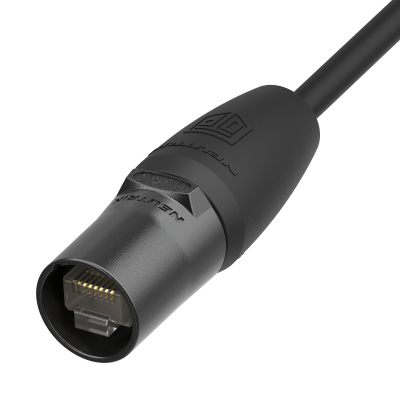

NE8MXR-B-TOP_ex_per_front NE8MXR-B-TOP_persp front
NE8MXR-B-TOP_ex_per_front
NE8MXR-B-TOP_persp front
1/2
neutrik-fr / Produits / Connecteurs etherCON® RJ45 / etherCON® Cable Connectors / etherCON® TOP Series / NE8MXR1-B-TOP-D

NE8MXR1-B-TOP-D

Download Data Sheet

Introducing the latest innovation in ethernet connectivity, expanding the NEUTRIK etherCON® TOP portfolio. Designed to withstand the harshest outdoor conditions, this connector combines durability with versatility, ensuring reliable performance in any environment and application.

With this unique design, the TOP (TRUE OUTDOOR PROTECTION) connector allows for the shell to be fully retracted for the first time, providing compatibility with standard RJ45 receptacles. This feature allows flexible and universal usage in various applications, removing the risk of lost shells.

Please note that the RJ45 carrier cable connector includes a CAT6A RJ45 plug and a wire manager. It is designed for the use with non-preassembled cables only.

ATTENTION: Does not intermate with the CAT6 receptacle NE8FDY-C6 and NE8FDY-C6-B.

Features & Benefits
  • Retractable carrier shell allows compatibility with common RJ45 without the risk of losing the shell.
  • Rugged diecast shell and unique chuck type strain relief for harsh environments
  • IP65 ingress protection class with closed sealing cap (SCMX-TOP) or in mated condition with NEUTRIK® etherCON® TOP receptacles
  • UV resistant F2 certified materials (with UL yellow card)
  • Corrosion resistant plating and materials
  • Flame resistant V0 rated connector
  • Halogen free materials to protect humans and the environment - no toxic or corrosive gases are released
  • Designed to prevent breakage of the fragile components of standard RJ45 connectors
  • CAT6A RJ45 plug and a wire manager is included with this product.
  • Allows assembly of non-preassembled conventional RJ45 cables
Downloads
Drawing NE8MXR1-B-TOP-D
pdf - 275.26 KB
Drawing NE8MXR1-B-TOP-D
dxf - 1.38 MB
3D File NE8MXR1-B-TOP-D
stp - 3.15 MB
BDA 729 V3 - etherCON NE8MXR1-B-TOP
pdf - 4.6 MB

Technical Information

Product
Title NE8MXR1-B-TOP-D
Product Family etherCON®
Connection Type RJ45 carrier cable connector
Gender Male
IMPORTANT Cable connectors include a CAT6A RJ45 plug and a wire manager.
RJ45 cable assembly must be provided by the end user!
Mechanical
Cable O.D. 5.5 - 8.0 mm
Wiresize AWG26/1 – AWG 27/1 (solid)
AWG24/7 – AWG 27/7 (stranded)
Insertion Force ≤ 30 N 
Withdrawal Force ≤ 30 N 
Lifetime min. 1000 mating cycles
min.100 retracting cycles
Material
Boot Thermoplastic elastomer (TPE)
Shell Zinc diecast (ZnAl4Cu1)
Strain Relief Polyketon (PK)
Sleeve Polyamid (PA6, GF15%)
Environmental
Protection Class IP65 (mated) 
IP65 (closed sealing cap)
Temperature Range -30 °C to +80 °C 
Accessories
audio

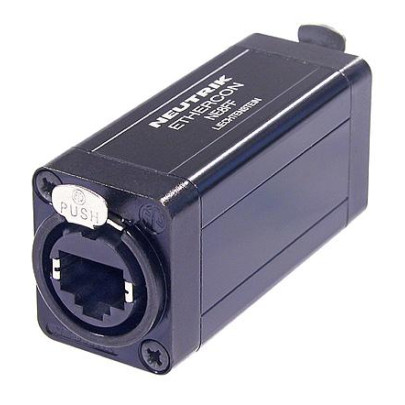

NE8FF

etherCON RJ45 feedthrough coupler for cable extensions

Dichtkappe_SCMX-TOP_persp front liegend_RGB_WEB.png
SCMX-TOP

The rubber sealing cover protects the XLR male TOP connectors NC*MX-TOP & etherCON TOP cable connector NE8MX-TOP from dust and water according to protection class IP65.

audio
NE8FFX6-W

Coupleur Etanche Ethercon catégorie 6a pour rallonger les câbles
