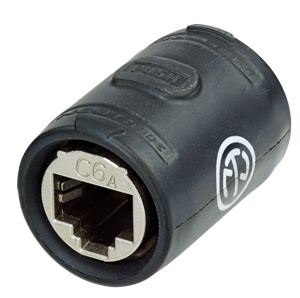

Add a description ...
neutrik-fr / Produits / NE8FFX6-W

NE8FFX6-W

Download Data Sheet

Coupleur Etanche Ethercon catégorie 6a pour rallonger les câbles

Caractéristiques & Avantages
  • Coupleur renforcé avec conformité des composants CAT6A selon ISO / CEI 11801 et TIA / EIA 568-C.2
  • IP65 protégé lorsqu'il est couplé avec NE8MX6 *
  • Compatible avec la prise RJ45 standard
  • Forme révolutionnaire métal recouvert de caoutchouc
  • L'adaptateur offre un système de verrouillage robuste et testé des millions de fois
Downloads
st-ne8ffx6-w
pdf - 143.79 KB
Featured Products 201912 V15 - NF14
pdf - 7.87 MB

Technical Information

Product
Title NE8FFX6-W
Connection Type Adapter
Gender female
Electrical
Contact resistance < 200 mΩ
Dielectric strength > 1.5 kVdc
Insulation resistance > 0.5 GΩ
Rated current per contact 1.5 A
Transmission performance CAT6A, acc. TIA/EIA rating
Class EA, acc. IEC/ISO/EN rating
Power over Ethernet PoE+ acc. IEEE 802.3at
Mechanical
Insertion force ≤ 50 N
Withdrawal force ≤ 50 N
Lifetime > 1000 mating cycles
Wiresize
Wiring Feedthrough
Locking device Latch lock
Material
Contact plating Au
Shell Rubber (EPDM)
Strain relief CuZn35Pb2, Tin plated
Shell coating Black KTL
Environmental
Temperature range - 30 °C to + 80 °C
Protection class IP65 (in combination with NE8MX*)
Accessories
etherCON - NE8MX6.png
NE8MX6

etherCON CAT6A cable connector self-termination, for insulation diameter > 1.1 mm, nickel plating

etherCON - NE8MX6-B.png
NE8MX6-B

etherCON CAT6A cable connector self-termination, for insulation diameter > 1.1 mm, black plating

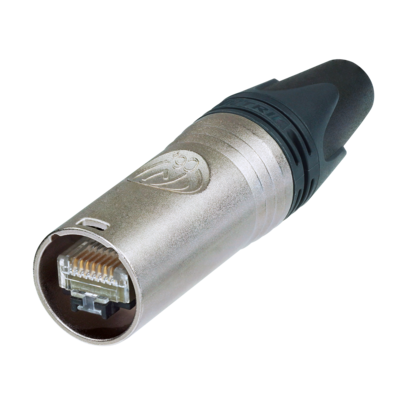

etherCON - NE8MX6-T.png
NE8MX6-T

etherCON CAT6A cable connector self-termination, for insulation diameter ≤ 1.1 mm, nickel plating

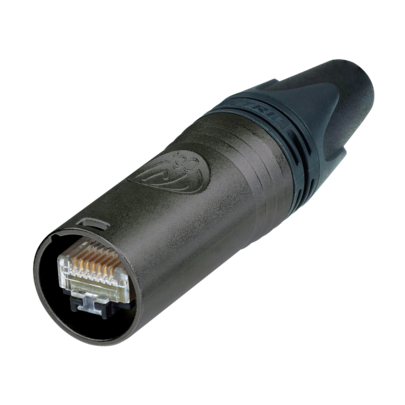

etherCON - NE8MX6-B-T.png
NE8MX6-B-T

etherCON CAT6A cable connector self-termination, for insulation diameter ≤ 1.1 mm, black plating

audio

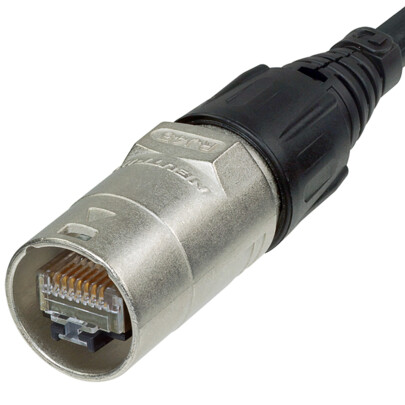

NE8MC

*Discontinued*

RJ45 cable connector carrier for preassembled RJ45 plugs consisting of shell, fixing disk, chuck, bushing and boot

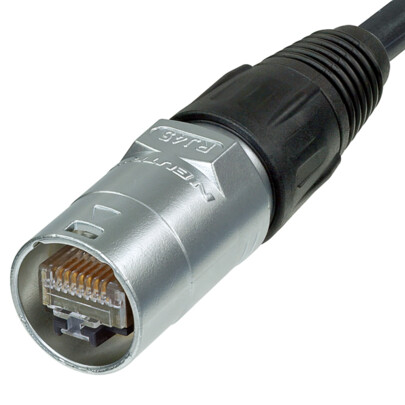

NE8MC-1

*** DISCONTINUED *** Cable connector carrier consisting of shell, fixing disk, chuck and boot

audio

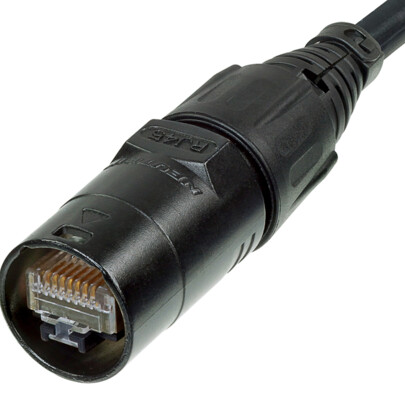

NE8MC-B

RJ45 cable connector carrier for preassembled RJ45 plugs consisting of black chromium shell, fixing disk, chuck, bushing and boot

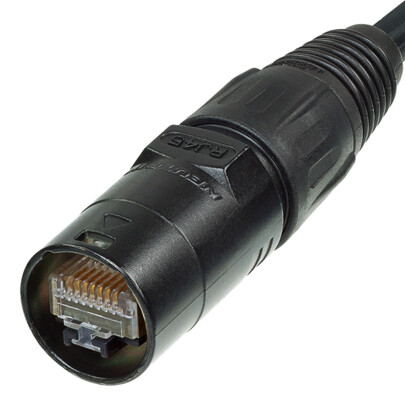

NE8MC-B-1

*** DISCONTINUED *** Cable connector carrier consisting of black chromium shell, fixing disk, chuck and boot
