NE8MX6
neutrik-fr / Produits / NE8MX6

NE8MX6

Download Data Sheet

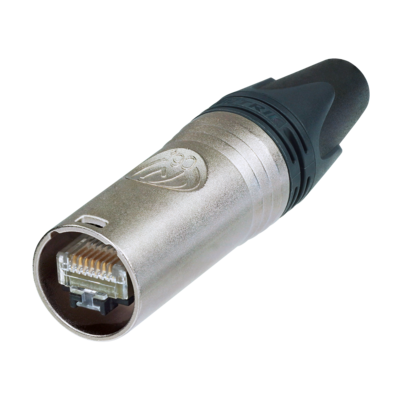

etherCON CAT6A cable connector self-termination, for insulation diameter > 1.1 mm, nickel plating

The set NE8MX6 consists of a cable plug carrier offering a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6A compliant RJ45 plug. The set is suitable for a cable diameter range of 7 mm to 9.5 mm and wire gauge of AWG24/1 - AWG22/1 (solid) or AWG24/7 - AWG22/7 (stranded).

Attention! Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

If the insulation diameter is ≤ 1.1 mm please refer to NE8MX6-T.

Features & Benefits
  • Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
  • PoE++ compliant according to 802.3bt Type4
  • IP65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W
  • Rugged latch lock system million fold proven
  • Intermateable with the existing etherCON CAT5 range
  • Unique Neutrik chuck-type strain relief
Downloads
BDA 428 V6 - NE8MX-6 - etherCON C6A - Cable Connector - 202410
pdf - 3.59 MB
test-report-ne8mx6
pdf - 1.19 MB
ntp07---ethercon-cat6a
pdf - 2.04 MB
iec-60529-neutrik-sne8fdx-_6-w
pdf - 5.26 MB
whitepaper_cat6a_v5-1
pdf - 14.26 MB
ne8mx6-1
dxf - 1.06 MB
ne8mx6-2
pdf - 122.2 KB

Technical Information

Product
Title NE8MX6
Gender male
Electrical
Dielectric strength 1 kVdc
Insulation resistance > 0.5 GΩ
Rated current per contact 1.5 A
Transmission performance CAT6A, acc. TIA/EIA rating
CAT6A, acc. IEC/ISO/EN rating
Power over Ethernet PoE++ acc. IEEE 802.3bt
Mechanical
Cable O.D. 7.0 - 9.5 mm
Lifetime > 1000 mating cycles
Wiresize AWG 24/1 - AWG 22/1 (solid)
AWG 24/7 - AWG 22/7 (stranded)
Locking device Latch lock
Insulation diameter 1.1 - 1.6 mm
Material
Bushing PA / PU
Contact plating Au
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Strain relief POM
Environmental
Protection class IP 65 (in combination with NE8FDX-*6-W)
Temperature range -40 °C to +70 °C
Accessories
HTXX-14

Hand tool for tightening the bushing of the XLR XX-14 series, jumboPLUG and etherCON CAT6A series.

HX-CAT6A

Parallel press tool for etherCON CAT6A series

audio
XXR-*

Colored coding rings. Color ring can be changed without unsoldering insert.

audio
XXCR

Transparent coding ring which allows an individual customized labeling, branding, coding etc.

8MX6

Wire manager (spare part) for etherCON CAT6A NE8MX6 for re-assembly.

audio
NE8FFX6-W

Coupleur Etanche Ethercon catégorie 6a pour rallonger les câbles
