NE8MC-B-1
*** DISCONTINUED ***
Direct replacement / successor: NE8MX-B-1
Cable connector carrier consists of a black chromium shell, fixing disk, chuck and boot. The boot (same as X-Series) is suitable for cable diameters from 3.5 - 8 mm. For non pre-assembled cables only. Cable connector carrier does not include a RJ45 plug.
The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution.
Attention! Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.
Features & Benefits
- The RJ45 system for harsh and demanding environment
- Cable connector carrier accepts the most common RJ45 plugs (see list at downloads)
- Rugged diecast shell and unique chuck type strain relief
- Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ 45 connectors
- O-ring gasket to achieve IP54 water protection in combination with SE8FD sealing kit

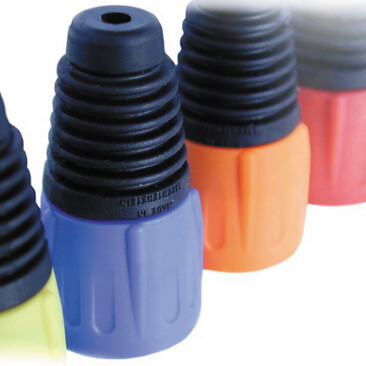

- Accessories include color coded boots in 9 standard colors
Downloads
Technical Information
| Product | |
|---|---|
| Title | NE8MC-B-1 |
| Gender | male |
| Mechanical | |
|---|---|
| Cable O.D. | max. 8 mm 0.315' |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | |
| Material | |
|---|---|
| Boot | Polyamide (PA 6) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Strain relief | Polyacetal (POM) |
| Environmental | |
|---|---|
| Temperature range | -30 °C to +80 °C |
