NE8FDX-Y6-B
neutrik-fr / Produits / NE8FDX-Y6-B

NE8FDX-Y6-B

Download Data Sheet

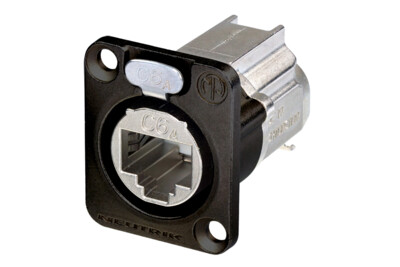

D-shape CAT6A panel connector, shielded, IDC termination, black housing

Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

Features & Benefits
  • Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
  • PoE type 3 class 6 (60W) acc. IEEE 802.3bt
  • Rugged latch lock system million fold proven
  • Intermateable with the existing etherCON CAT5 range
  • Shielded system - high noise immunity and EMI protection
  • CAT6A / Class EA according to TIA/EIA 568C and ISO/IEC 11801
Downloads
BDA 430 - etherCON C6A - Chassis Connector
pdf - 1.09 MB
test-report-ne8fdx-y6
pdf - 1.27 MB
ntp07---ethercon-cat6a
pdf - 2.04 MB
whitepaper_cat6a_v5-1
pdf - 14.26 MB
ne8fdx-y6
dxf - 998.26 KB
ne8fdx-y6-1
pdf - 105.67 KB
d-ne8fdx-y6
stp - 173.31 KB

Technical Information

Product
Title NE8FDX-Y6-B
Gender female
Electrical
Dielectric strength 1 kVdc
Insulation resistance > 0.5 GΩ
Rated current per contact 1.5 A
Rated voltage ≤ 57 V
Transmission performance CAT6A acc. to TIA/EIA 568C channel specifications
CLASS EA acc. to ISO/IEC 11801 channel specifications
Power over Ethernet PoE type 3 class 6 (60W) acc. IEEE 802.3bt
Mechanical
Lifetime > 1000 mating cycles
Wiresize
Wiresize solid: AWG 26/1 - AWG 22/1
stranded: AWG 26/7 - AWG 22/7
Locking device Latch lock
Mounting direction Front mounting
Insulation diameter 0.85 - 1.6 mm
Material
Contact plating Au
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black KTL
Locking element plating Nickel
Environmental
Flammability UL 94 V-0
EN 45545 R26
Temperature range -40 °C to + 70 °C
Standard compliance ISO/IEC 11801-1 Ed. 1.0 (2017-11)
IEC 60603-7-3 Ed.2.0 (2010-04)
IEC 60512-99-002 Ed.2.0 (2022-01)
IEC 60512-9-3 (2011-06)
EN 45545-2:2020+A1:2023 (R26, clause 4.2, clause 4.3.2)
Accessories
HX-CAT6A

Parallel press tool for etherCON CAT6A series

audio
SCDX

Hinged cover

audio
DSS-*

Colored lettering plate for D-shape-connectors

SCCD-W

Spring-loaded sealing cover

audio
SCDF

Rubber sealing cover for XLR D-Series female
