NC4MD-LX-B
neutrik-fr / Produits / NC4MD-LX-B

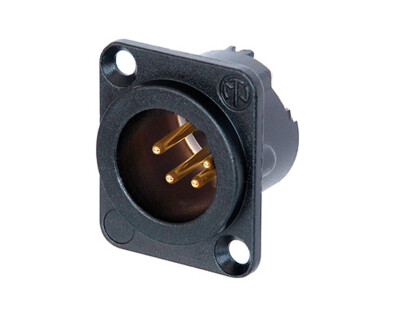

NC4MD-LX-B

Download Data Sheet

4 pole male receptacle, solder cups, black metal housing, gold contacts

The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding.

Features & Benefits
  • All metal housing offers best overall RF protection and electromagnetic shielding
  • Duplex ground contact for excellent contact integrity between chassis and cable connector
  • Male connector's retention bar replaces plastic design with all metal version improving pull-out force
  • Larger solder contacts for easier termination
  • Optional connection to easily join pin1 to chassis ground
  • D-style housing provides installation compatibility with industry standard D mounting dimensions
Downloads
nc4md-lx-2
pdf - 50.75 KB
nc4md-lx-3
dxf - 562.84 KB
NC4MD-LX-B
stp - 1.65 MB
01 NEUTRIK Section XLR Connectors PG EN 202202-V23_opt
pdf - 3.6 MB
UL Certificate of Compliance 2024
pdf - 308.18 KB

Technical Information

Product
Title NC4MD-LX-B
Connection Type XLR
Gender male
Electrical
Capacitance between contacts ≤ 7 pF
Contact resistance ≤ 5 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 10 A
Rated voltage < 50 V
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize max. 1.5 mm²
Wiresize max. 16 AWG
Wiring Solder contacts
Locking device Latch lock
Chassis shape D
Material
Contact plating 2 µm Au over 2 µm Ni
Contacts Brass (CuZn35Pb2)
Insert Polyamide (PA66)
Locking element Steel Ck67
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Environmental
Flammability UL 94 V-0
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
Accessories
CAS-DUMMY

The dummyPLUG case includes a mixed assortment of dummyPLUGs

audio
DBA-BL

Dummy-plate to cover D-shape cutouts

audio
DSS-*

Colored lettering plate for D-shape-connectors

MFD

M3 mounting frame

audio
NDM

dummyPLUG for male XLR receptacles

audio
SCDM

Rubber sealing cover for XLR D-Series male and speakON NL2M* and NL4M*

audio
SCDR

Soft plastic cover for the rear ends of several D-size chassis connectors.

audio
SCDX

Hinged cover

audio
SCM

Dust protection cover for male chassis connectors

SCCD-W

Spring-loaded sealing cover

SCD-W

Universal sealing cap
