NC3MD-LX-B
neutrik-fr / Produits / NC3MD-LX-B

NC3MD-LX-B

Download Data Sheet

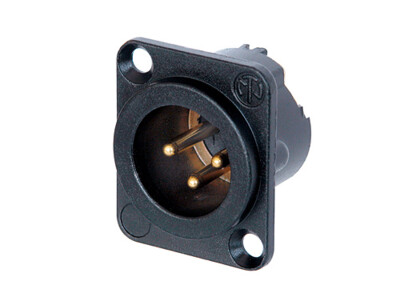

3 pole male receptacle, solder cups, black metal housing, gold contacts

The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector.

Features & Benefits
  • All metal housing offers best overall RF protection and electromagnetic shielding
  • Duplex ground contact for excellent contact integrity between chassis and cable connector
  • Male connector's retention bar replaces plastic design with all metal version improving pull-out force
  • Larger solder contacts for easier termination
  • Optional connection to easily join pin1 to chassis ground
  • D-style housing provides installation compatibility with industry standard D mounting dimensions
Downloads
nc3md-lx-2
pdf - 53.83 KB
nc3md-lx-3
dxf - 594.18 KB
3D Model NC3MD-LX-B
stp - 1.74 MB
3-D NC3MD-LX
stp - 102.61 KB
01 NEUTRIK Section XLR Connectors PG EN 202202-V23_opt
pdf - 3.6 MB
UL Certificate of Compliance 2024
pdf - 308.18 KB

Technical Information

Product
Title NC3MD-LX-B
Connection Type XLR
Gender male
Electrical
Capacitance between contacts ≤ 4 pF
Contact resistance ≤ 5 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 16 A
Rated voltage < 50 V
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize max. 2.5 mm²
Wiresize max. 14 AWG
Wiring Solder contacts
Locking device Latch lock
Chassis shape D
Material
Contact plating 2 µm Au over 2 µm Ni
Contacts Brass (CuZn35Pb2)
Insert Polyamide (PA66)
Locking element Steel Ck67
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Environmental
Flammability UL 94 V-0
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
Accessories
CAS-DUMMY

The dummyPLUG case includes a mixed assortment of dummyPLUGs

audio
DBA-BL

Dummy-plate to cover D-shape cutouts

audio
DSS-*

Colored lettering plate for D-shape-connectors

MFD

M3 mounting frame

audio
NDM

dummyPLUG for male XLR receptacles

audio
SCDM

Rubber sealing cover for XLR D-Series male and speakON NL2M* and NL4M*

audio
SCDR

Soft plastic cover for the rear ends of several D-size chassis connectors.

audio
SCDX

Hinged cover

audio
SCM

Dust protection cover for male chassis connectors

SCCD-W

Spring-loaded sealing cover

SCD-W

Universal sealing cap
