NBTB75IFI4
neutrik-fr / Produits / NBTB75IFI4

NBTB75IFI4

Download Data Sheet

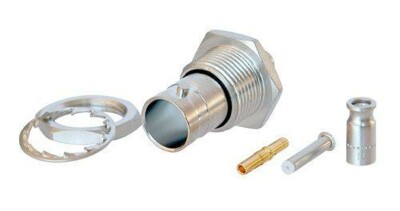

BNC cable jack for panel mount, isolated

Neutrik's BNC cable jacks for panel mount offer a true 75 Ω design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use.

Suitable cables:
Belden 1520A, Belden 1521A, Belden 1522A, Belden 179DT, Draka 0.31/1.45 AF, Draka 753-1304(2), Draka 755-1302, Suhner G02233, ZNK CM14B

Crimp size:
Pin: 1.6 mm (square)
Shield: 4.06 mm (hex)

Features & Benefits
  • Gold plated center contact
  • True 75 Ω design meets the stringent HD requirements
  • Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential)
Downloads
nbtb75ifi4-1
pdf - 39.3 KB
drawing-nbtb75ifi4
dxf - 433.31 KB
3-d-nbnb75-nut
stp - 32.6 KB
3-d-nbtb75ifi4
stp - 71.56 KB
bnc-cable_jack_panel_version-tiny
pdf - 589.82 KB
BNC Cable and Connector Guide
pdf - 627.89 KB
05 Section BNC Connectors PG 202311 EN -V25
pdf - 3.94 MB

Technical Information

Product
Title NBTB75IFI4
Connection Type BNC 75 Ω
Gender female
Electrical
Contact resistance ≤ 3 mΩ (inner)
Contact resistance ≤ 2 mΩ (outer)
Dielectric strength 0,75 kVdc
Impedance 75 Ω
Insulation resistance > 5 GΩ
Rated voltage <50 V
VSWR ≤1.050/>32 dB up to 1 GHz
≤1.065/>30 dB up to 2 GHz
≤1.100/>26 dB up to 3 Ghz
Mechanical
Cable O.D. 4.0 - 7.7 mm
Cable retention > 30 N (Center)
Crimp size 4,06 Hex crimp (shield) acc. MIL22520/5-39(B)
Crimp size (pin) 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
Insertion force < 25 N
Lifetime > 1000 mating cycles
Wiresize
Locking device Bayonett
Cable anchoring Jacket crimping
Material
Contacts Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)
Insert PTFE
Shell Brass (CuZn39Pb3)
Shell plating Optalloy®
Environmental
Temperature range -30 °C to +85 °C
Contact crimpability Complies with IEC 60803 and IEC 60352-2
Accessories
video
DIE-BNC-CS

Crimp tool die for HX-BNC Pin crimping: 1.6 mm Shield and jacket: HEX crimp 4.06 mm (A), 7.01 mm (B)

industrial
DIE-R-BNC-PDC

Crimp tool die for HX-R-BNC Pin crimping: 1.60 mm Shield and jacket: HEX crimp 6.47 mm (A), 4.53 mm (B), 4.06 mm (C)

video
HX-BNC

Crimp tool, frame ATTENTION: Suitable dies are DIE-BNC-*

HX-R-BNC

Crimp tool, frame ATTENTION: Suitable dies are DIE-R-* and DIE-R-BNC*
