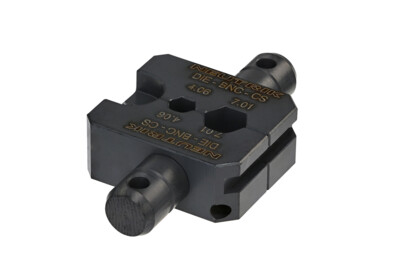

DIE-BNC-CS
Crimp tool die for HX-BNC
Pin crimping: 1.6 mm
Shield and jacket: HEX crimp 4.06 mm (A), 7.01 mm (B)
Downloads
Technical Information
| Product | |
|---|---|
| Title | DIE-BNC-CS |
| Mechanical | |
|---|---|
| Crimp size | 4.06, 7.01 Hex crimp (shield) acc. MIL22520/5-39(B), acc. IEC 60803 (die designation F) |
| Crimp size (pin) | 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2) |
| Wiresize | |
