NBNB75GUU11
*** DISCONTINUED ***

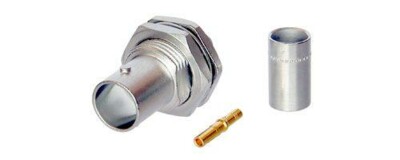

BNC cable jack for panel mount, grounded
Neutrik's BNC cable jacks for panel mount offer a true 75 Ω design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use.
Suitable cables:
Argosy Image 1000, Draka 1.0/4.8AF, Draka 755-901/5, Klotz V10/48
Crimp size:
Pin: 1.6 mm (square)
Shield: 7.36 mm (hex)
Features & Benefits
- Gold plated center contact
- True 75 Ω design meets the stringent HD requirements
- Grounded panel mount
Downloads
Technical Information
| Product | |
|---|---|
| Title | NBNB75GUU11 |
| Connection Type | BNC 75 Ω |
| Gender | female |
| Electrical | |
|---|---|
| Contact resistance | ≤ 3 mΩ (inner) |
| Contact resistance | ≤ 2 mΩ (outer) |
| Dielectric strength | 1,5 kVdc |
| Impedance | 75 Ω |
| Insulation resistance | > 5 GΩ |
| Rated voltage | <50 V |
| VSWR | ≤1.050/>32 dB up to 1 GHz ≤1.065/>30 dB up to 2 GHz ≤1.100/>26 dB up to 3 Ghz |
| Mechanical | |
|---|---|
| Cable O.D. | 7.3 mm |
| Cable retention | > 30 N (Center) |
| Crimp size | 7,36 Hex crimp (shield) acc. MIL22520/5-41(A) |
| Crimp size (pin) | 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2) |
| Insertion force | < 25 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | |
| Locking device | Bayonett |
| Mounting direction | Rear mounting |
| Chassis shape | 12.7 mm |
| Cable anchoring | Jacket crimping |
| Material | |
|---|---|
| Contacts | Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact) |
| Insert | PTFE |
| Shell | Brass (CuZn39Pb3) |
| Shell plating | Optalloy® |
| Environmental | |
|---|---|
| Temperature range | -30 °C to +85 °C |
| Contact crimpability | Complies with IEC 60803 and IEC 60352-2 |
Accessories
video
DIE-BNC-U
Crimp tool die for HX-BNC Pin crimping: 1.6 mm Shield and jacket: HEX crimp 7.36 mm (A)
video
DIE-R-BNC-PU
Crimp tool die for HX-R-BNC Pin crimping: 1.60 mm Shield and jacket: HEX crimp 6.47 mm (A), 7.36 mm (B)
video
HX-BNC
Crimp tool, frame ATTENTION: Suitable dies are DIE-BNC-*
HX-R-BNC
Crimp tool, frame ATTENTION: Suitable dies are DIE-R-* and DIE-R-BNC*
