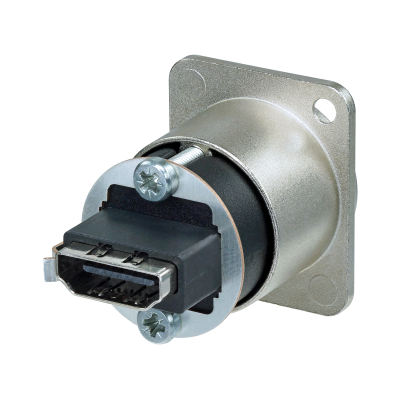

NAHDMI-W VORSCHAUBILD - NAHDMI-W Rear
NAHDMI-W
VORSCHAUBILD - NAHDMI-W Rear
1/2
neutrik-fr / Produits / NAHDMI-W

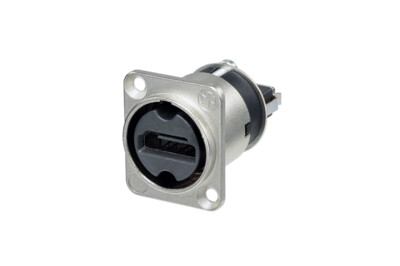

NAHDMI-W

Download Data Sheet

HDMI feedthrough adapter, D-shape housing

Neutrik's HDMI solution for the transmission of any digital TV and PC video format including high-definition video (HDTV) can be integrated in networks very easy.

Features & Benefits
  • To transmit any digital TV and PC video format including high-definition video (HDTV).
  • HDMI feedthrough adapter with 19 pole HDMI receptacle at both ends
  • IP65 ingress protection in mated condition with NKHDMI-* and SCDP-* sealing gasket
  • Universally accepted standard D-shape housing
  • Removable screen to chassis grounding
  • Shielded system - high noise immunity and EMI protection due to continuous 360 degree shield


Downloads
nahdmi
stp - 152.37 KB
Drawing NAHDMI-W
pdf - 235.08 KB
Drawing NAHDMI-W
dxf - 1003.58 KB
multimedia-series-ip-65-test-report
pdf - 2.58 MB

Technical Information

Product
Title NAHDMI-W
Connection Type Adapter
Gender female
Mechanical
Wiresize
Locking device Push-Pull
Mounting direction Front or rear mounting (max 2 mm panel thickness)
Chassis shape D
Lifetime > 1000 mating cycles
Material
Contact plating Au
Contacts Bronze (CuSn)
Insert
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Environmental
Flammability UL 94 V-0
Standard compliance HDMI 2.0
Temperature range -25 °C to +85 °C
Accessories
audio
DSS-*

Colored lettering plate for D-shape-connectors

MFD

M3 mounting frame

audio
SCDX

Hinged cover

SCCD-W

Spring-loaded sealing cover

SCD-W

Universal sealing cap

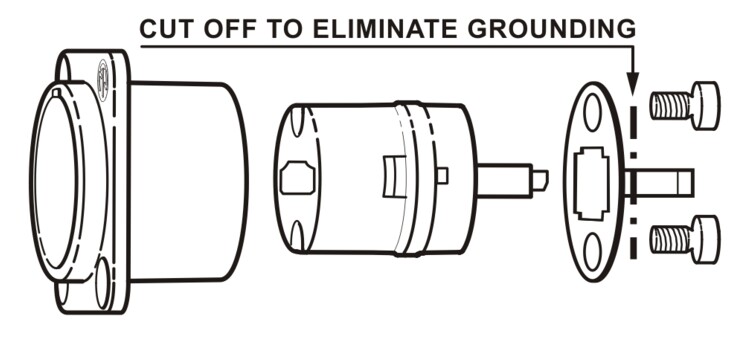

Removable screen to chassis grounding

NAHDMI-W romovable grounding
