MPC
neutrik-fr / Produits / MPC

MPC

Download Data Sheet

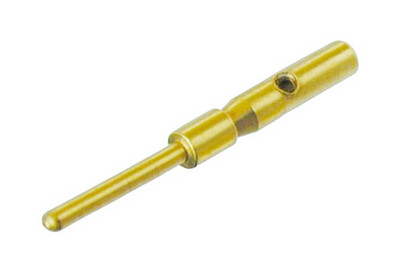

Male crimp contact, gold plated, for cable and chassis connectors

Wire size: AWG 24 / 0.22 mm²
Crimping standard: No. 5 / M22520/2-01

The modular system of the miniCON series offers the possibility to assemble a desired connector from a wide range of various parts. Including additional parts for special versions (e.g. cable connector extension, crimp set, ...).

The miniCON with its flexible and compact design is perfectly suitable for multipin/industrial applications. The rugged all metal miniature connector offers a push-pull locking device and stands out by an excellent cost/performance ratio.

Features & Benefits
  • Easy assembly: contact soldering / crimping in disassembled condition avoids awkward wiring of high density contacts
  • Up to 12 contacts selectable
  • Push-pull self-locking system
  • Rugged, precisely machined all metal design
  • Gold plated contacts



Downloads
MSC
pdf - 58.08 KB
msc
dxf - 684.64 KB
BDA 126 - miniCON
pdf - 1.48 MB
minicon-cable-preparation
pdf - 162.78 KB
miniCON-Contact Arrangement
pdf - 1.38 MB
Neutrik Product Guide - 06 powerCON and Circular Connectors PG EN 202210-V25
pdf - 7 MB

Technical Information

Product
Title MPC
Connection Type miniCON
Gender male
Mechanical
Wiresize 0,22 mm²
Wiresize 24 AWG
Wiring Crimp contacts
Crimp size No. 5 / M22520/2-01
Accessories
industrial
HX-CONTACT

DMC crimptool AFM8 acc. M22520/2-01

industrial
MMI

Male insert for up to 12 contacts

industrial
MPOS-MPC

Modified DMC positioner (K155) for MPC (miniCON male crimp contact)

industrial
MRM

*** DISCONTINUED *** Male chassis connector housing and insert pre-assembled

industrial
MSC

Cable connector housing incl. chuck type strain relief and bushing for male and female inserts

industrial
MSRC

Set of strain relief crimp version for various cable diameters

Modular System

miniCON Modular System
