MSRC
neutrik-fr / Produits / MSRC

MSRC

Download Data Sheet

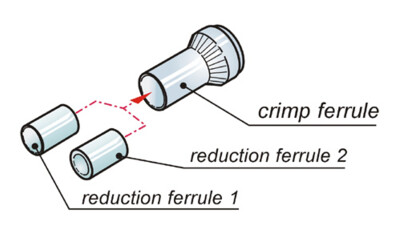

Set of strain relief crimp version consisting of crimp ferrule and two reduction ferrules for various cable diameters

Special crimp type strain relief establishes an ideal coaxial connection of the cable shield to the connector shell for best EMC shielding.

For cable OD: 2.5 - 3.2 mm, 3.3 - 4.4 mm and 4.5 - 6.0 mm
HEX Size/Standard: 6.47 mm / IEC 803

The modular system of the miniCON series offers the possibility to assemble a desired connector from a wide range of various parts. Including additional parts for special versions (e.g. cable connector extension, crimp set, ...).

The miniCON with its flexible and compact design is perfectly suitable for multipin/industrial applications. The rugged all metal miniature connector offers a push-pull locking device and stands out by an excellent cost/performance ratio.

Features & Benefits
  • Easy assembly: contact soldering / crimping in disassembled condition avoids awkward wiring of high density contacts
  • Up to 12 contacts selectable
  • Push-pull self-locking system
  • Rugged, precisely machined all metal design
  • Gold plated contacts



Downloads
MSC
pdf - 58.08 KB
msc
dxf - 684.64 KB
BDA 126 - miniCON
pdf - 1.48 MB
minicon-cable-preparation
pdf - 162.78 KB
miniCON-Contact Arrangement
pdf - 1.38 MB
Neutrik Product Guide - 06 powerCON and Circular Connectors PG EN 202210-V25
pdf - 7 MB

Technical Information

Product
Title MSRC
Connection Type miniCON
Mechanical
Crimp size 6,47 Hex crimp (shield) acc. IEC 60803 (die designation E)
Wiresize
Accessories
audio
DIE-R-BNC-PJ

Crimp tool die for HX-R-BNC Pin crimping: 1.60 mm Shield and jacket: HEX crimp 6.47 mm (A), 5.41 mm (B)

HX-R-BNC

Crimp tool, frame ATTENTION: Suitable dies are DIE-R-* and DIE-R-BNC*

Modular System

miniCON Modular System
