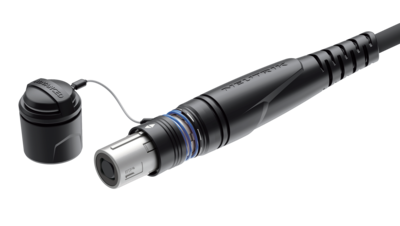

NKO48M-A - opticalCON MTP 48 ADVANCED CABLE CONNECTOR ASSEMBLY 48C_preview
NKO48M-A - opticalCON MTP 48 ADVANCED CABLE CONNECTOR ASSEMBLY
48C_preview
1/2
neutrik-fr / Produits / opticalCON MTP® 48 Cable

opticalCON MTP® 48 Cable

Download Data Sheet

Assembled, rugged and lightweight 48-channel mobile field cable, excellent cable retention due to aramid yarn, black PUR outer jacket, available in multi mode (PC).

The opticalCON MTP® cable connector accommodates 48 optical fibers (multi mode PC) based on conventional and proven MTP® connectivity protected by a ruggedized and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptional well protected against dirt and dust by an automatically operated sealing cover.

The cable connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and is packed either in a case, on drum or airspool.

Features & Benefits
  • Ruggedized and dirt-protected 48-channel fiber optic connection system
  • For point-to-point multichannel routing based on MTP® technology
  • Cable connector features rugged metal housing and heavy-duty cable retention
  • Spherical shutter guarantees low maintenance
  • Dust and water resistant according to IP65 in mated condition
  • Easy to clean, no special tools required
  • Reliable Push-Pull locking mechanism
  • Cable connector comes pre-assembled with a choice of mobile field cables
Downloads
NDS26 - opticalCON MTP® 48 ADVANCED
pdf - 295.52 KB
NEUTRIK opticalCON Guide – NF05 V30 – 202410
pdf - 43.46 MB

Technical Information

Product
Title opticalCON MTP® 48 Cable
Mechanical
Cable retention > 500 N
Insertion force < 45 N
Withdrawal force < 45 N
Lifetime (typ.) 2'500 mating cycles
Locking device Push-Pull
Material
Boot Rubber (EPDM)
Bushing ZnAl4Cu1
Insert Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Strain relief Brass (CuZn39Pb3) + PU, Ni
Environmental
Temperature range -40 °C to +75 °C
Protection class in mated condition IP65
Optical
Insertion loss < 0.9 dB
Optical connector MTP® female
Optical wiring Method A
Mobile cable
Colour black, matte
Core diameter Multimode 50 µm
Cladding diameter 125 µm
Comment PUR
Minimal bending radius 12.1 cm
Number of fibers 48
Cable retention Aramid yarn
Weight 48 kg/km
Overall diameter 8.1 mm
Accessories
CAS-FOCD-ADV

Fiber optic cleaning kit

audio
CAS-FOMD

Fiber Optic Measurement Devices

NOR-*

Color coding ring for opticalCON cable and chassis connectors (SCNO-FDW-A)

FOPS-SINGLE

The pulling sock simplifies the installation at a pulling force

FOCD-DCM

DRY Cleaner MTP® , cleaning brush for guidance holes

FOCD-STM

Distributor stock search

Enter part number and search Neutrik USA distributor's stock.

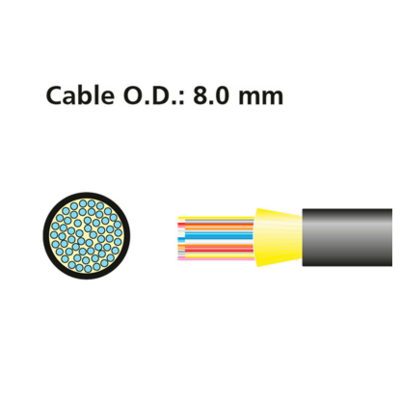

Cable cross section

48C

Packaging options and max. cable length

opticalCON-DRUM-Packagin---013456
