neutrik-fr / Produits / opticalCON MTP® 24 LITE

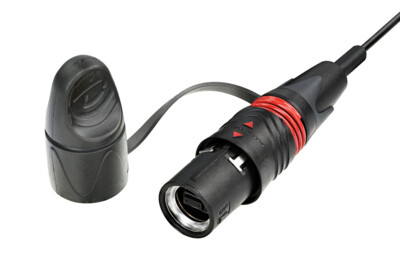

opticalCON MTP® 24 LITE

Download Data Sheet

24 channel MTP® based fiber system, improved bending performance due to new tactical fiber design, black matt outer jacket, available in multi- and single-mode (PC or APC).

Besides extreme applications there is also a demand for quality fiber connections for semi-rugged applications as e.g. patching or permanent installations. Such applications require a focus on costs and a sealing shutter is not required. The opticalCON MTP® LITE offers high performance and a cost effective, compact, and light weight design. It is fully compatible with the standard opticalCON MTP® chassis connector.

Features & Benefits
  • 24-channel MTP® based fiber optic connection system
  • Waterproof acc. to IP65 safety standard in mated condition
  • Recommended for multi-signal transmission
  • Push-pull locking mechanism
  • Custom color coding
  • Rugged housing
  • Rubber protected cap
  • Compatible with standard opticalCON ADVANCED NO24FDW-A chassis

The opticalCON MTP® LITE cable connector accommodates USCONEC Elite female ferrules in a durable plastic housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and comes with an airspool packaging.

Downloads
NDS17 - opticalCON MTP® 24 LITE
pdf - 230.19 KB
BDA 440 V2 - opticalCON LITE MTP Handling Instruction
pdf - 4.85 MB
NEUTRIK opticalCON Guide – NF05 V30 – 202410
pdf - 43.46 MB
reference-projects---opticalcon
pdf - 4.96 MB
opticalcon_mtp_lite_technical_paper
pdf - 6.15 MB
st-no24_x-l
pdf - 138.36 KB
st-no24_x-l-1
dxf - 1.25 MB
ntp09---opticalcon-mtp-24-lite
pdf - 2.37 MB

Technical Information

Product
Title opticalCON MTP® 24 LITE
Connection Type opticalCON
Gender male
Mechanical
Cable retention > 250 N
Insertion force < 45 N
Withdrawal force < 45 N
Lifetime (typ.) 1'500 mating cycles
Wiresize
Locking device Push-Pull
Material
Boot Rubber (EPDM)
Insert PBT
Shell PBT
Environmental
Temperature range -40 °C to +70 °C
Optical wiring ISO / IEC 11801
Protection class in mated condition IP65
Optical
Insertion loss < 0.45 dB
Optical return loss
> 50 dB (PC)
> 60 dB (APC)
Mobile cable
Colour black, matte
Core diameter Single Mode 9 µm, Multimode 50 µm
Cladding diameter 125 µm PVC
minimal bending radius 3.5 cm
Cable retention Aramid yarn
Weigth 12.6 kg/km
Overall diameter 3.5 mm
Accessories
audio
opticalCON® Coupler

audio
CAS-FOMD

Fiber Optic Measurement Devices

CAS-FOCD-ADV

Fiber optic cleaning kit

NOR-*

Color coding ring for opticalCON cable and chassis connectors (SCNO-FDW-A)

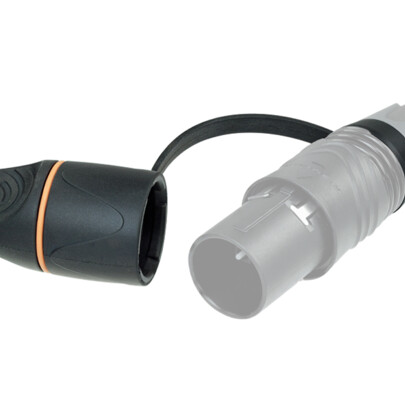

SCNKO-L

Rubber dirt protection for opticalCON LITE cable connector (spare part)

FOCD-DCM

DRY Cleaner MTP® , cleaning brush for guidance holes

Tactical Patch Cable

Conventional patch cables are sensitive in terms of undercutting the minimum bending radius and lateral pressure. Neutrik’s tactical patch cables contain a unique fiber design including a protection layer which allows bending with minimal radius and increased lateral pressure. Therefore the tactical patch cables are the right choice for permanent or semi-permanent applications.
