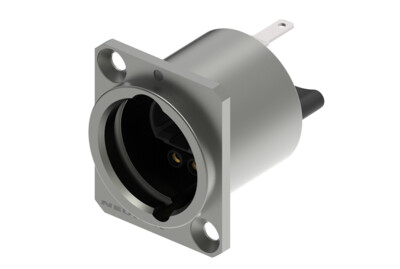

opticalCON HYBRID MED Chassis

Download Data Sheet

Female chassis connector with ruggedized anticorrosive plating, 2 crimp contacts, 1 MPO feedthrough socket and 1 shell ground contact for cable shield.

The chassis connector acts as a feedthrough allowing simplified installations by connecting a MPO patch cable on the rear. The chassis cut-out has the same size like Neutrik’s approved D-Shape design and is therefore simple to integrate into existing systems.

Features & Benefits
  • Suggested OEM equipment chassis connector with common D-shape design
  • Improved guiding nose for safe and correct connection
  • Ruggedized hybrid feedthrough connection system

    - MPO cut-out for patch cables
    - 2 power contacts
    - 1 ground contact
  • Designed as feedthrough for easy repair and replacement
  • Shielded system with EMI protection design
  • Suitable for indoor healthcare applications
Downloads
no16fd-xp
stp - 2.31 MB
20000982_-_NO16FD-XP
pdf - 203.69 KB
st-no16fd-xp
dxf - 1.09 MB
BDA 598 V2 - opticalCON HYBRID MED Cleaning Instruction
pdf - 832.63 KB
BDA 612 V1 - opticalCON HYBRID MED Contact Crimping
pdf - 1.63 MB
NEUTRIK opticalCON HYBRID MED NF27 V4 202010
pdf - 6.38 MB
opticalCON HYBRID MED Application
pdf - 981.48 KB
NTP14 - opticalCON HybridMED
pdf - 5.1 MB

Technical Information

Product
Title NO16FD-XP
Gender Female
Electrical
Contact resistance < 7 mΩ
Insulation resistance > 10 GΩ (initial)
Mains 12V AC / 10A / @50 Hz
Mechanical
Insertion force < 45 N
Withdrawal force < 45 N
Lifetime (typ.) 10'000 mating cycles
Locking force 900 N
Locking device Push/Pull
Mounting direction Front mounting
Wiresize (power) Max. 16 AWG
Material
Contacts Brass
Insert Polyetherimide and Polycarbonate (PEI+PC)
Shell Zinc diecast and Polyoxmethylen
Shell plating Nickel
Environmental
Flammability UL94 V-0
Temperature range -40°C to +75°C
Related Products
medical
opticalCON HYBRID MED Rendering Website.jpg

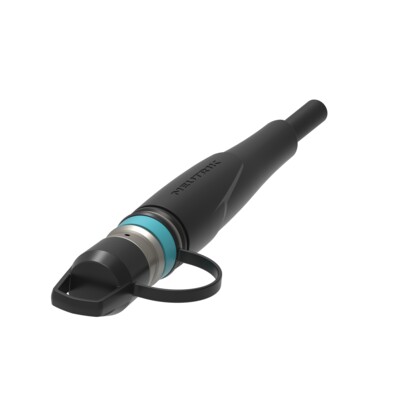

opticalCON HYBRID MED Connector
medical
Break Out 3 freigestellt.png

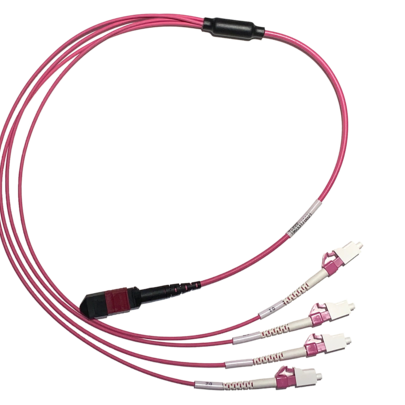

opticalCON HYBRID MED Breakout Cable
