neutrik-fr > Produits > NSSC-1
NSSC-1

NSSC-1

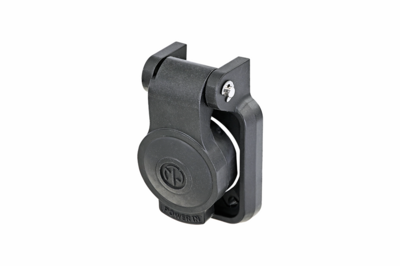

Le capuchon à fermeture automatique à ressort NSSC-1 pour les prises powerCON se ferme automatiquement après avoir débranché le connecteur du câble et scelle les connecteurs du châssis contre la poussière et l'eau selon IP65.

Convient pour :

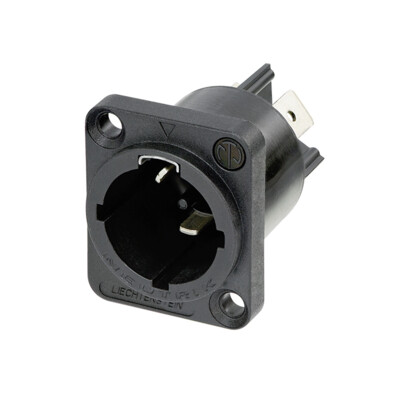

    NAC3MPX-TOP

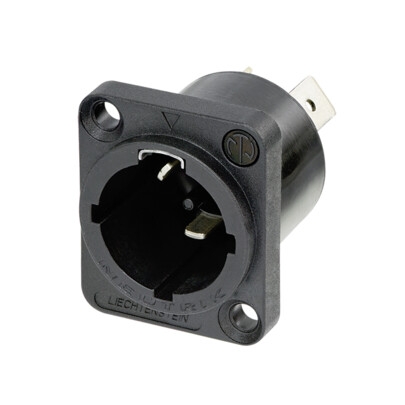

    NAC3MPX-WOT-TOP

Download Data Sheet
Le choix des thèmes
Downloads Informations Techniques Accessoires
Download Data Sheet

Downloads

  • Drawing NSSC-1
  • Drawing NSSC-1
  • 3D File NSSC-1
  • Assembly Instruction - Sealing self-closing cap powerCON

Technical Information

Product
Title NSSC-1
Material
Hard component Polyamide (PA 66)
Soft component EPTR
Environmental
Temperature range -30 °C to +80 °C
Flammability UL 94 V-0
Protection class IP65

Suitable for:

NAC3MPX-TOP
NAC3MPX-TOP
NAC3MPX-WOT-TOP
NAC3MPX-WOT-TOP
