NAC3MPX-WOT-TOP
neutrik-fr / Produits / powerCON® / powerCON® TRUE1 / powerCON® TRUE1 Chassis Connectors / NAC3MPX-WOT-TOP

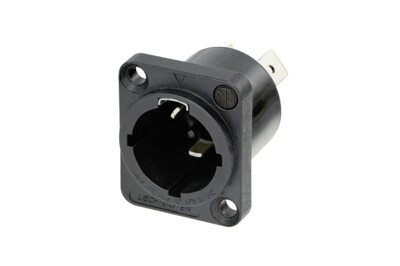

NAC3MPX-WOT-TOP

Download Data Sheet

Appliance inlet connector, 1/4" flat tab terminals, without insulation divider for PCB mounting only. If nothing mounting on a PCB choose NAC3MPX-TOP

The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Features & Benefits
  • IP65, UL50E enclosure type4 rating in combination with SCNAC-MPX (mated or with closed cap)
  • Heavy duty sealed power connector for harsh and demanding environment
  • ​Uses high impact UV-resistant materials
  • True mains connector with breaking capacity (CBC)
  • Lockable 16 A single phase connector (USA: 20 A)
  • Easy and reliable twist lock system
  • Extremely robust and reliable
  • Unique Neutrik cable retention
  • ENEC certified according to IEC 60320
  • UL498 certified
Downloads
d-3-d-nac3mpx-wot-top
stp - 99.14 KB
st-nac3mpx-wot-top
pdf - 104.95 KB
st-nac3mpx-wot-top
dxf - 732.72 KB
BDA 544 V3 - powerCON TRUE1 TOP - NAC3MPX-TOP + NAC3MPX-WOT-TOP
pdf - 1.2 MB
Neutrik TOP Products - NF23 V07 202111
pdf - 5.03 MB
CoC_Chassis_2018-07-03
pdf - 349.32 KB
Certificate_ENEC_40033493 (2023-10-06)
pdf - 315.58 KB
Certificate_CB_DE1-67967
pdf - 98.73 KB
Certificate_UL_E343813-20110501 (2024-05-08)
pdf - 436.33 KB
Links
UL Certificate (ECBT2.E343813) cUL Certificate (ECBT8.E343813)

Technical Information

Product
Title NAC3MPX-WOT-TOP
Electrical
Contact resistance ≤ 2 mΩ
Dielectric strength 4 kVdc / 2.8 kVac
Insulation resistance > 1 GΩ (after damp heat test)
Number of electrical contacts 2 + PE
Rating Europe EN 60320-1: 16 A 250 V AC
Rating USA UL 498: 20 A 250 V AC
Mechanical
Lifetime > 5000 mating cycles
Wiresize 2.5 mm²
Wiresize 12 AWG
Material
Contact plating 2 µm Ag
Locking element Stainless steel
Shell Polyamide (PA 6.6)
Contacts Spring Copper (CuSn0.2)
Environmental
Flammability UL 94 V-0
Protection class IP65, UL50E enclosure type4 rating in combination with SCNAC-MPX (mated or with closed cap)
Temperature range -30°C to +80°C according to IEC 61984
-5°C to +40°C according to IEC 60320-1
Solderability (for PCB) Complies with IEC 68-2-20
Accessories
SCNAC-01
SCCD-W

Spring-loaded sealing cover

MFD

M3 mounting frame

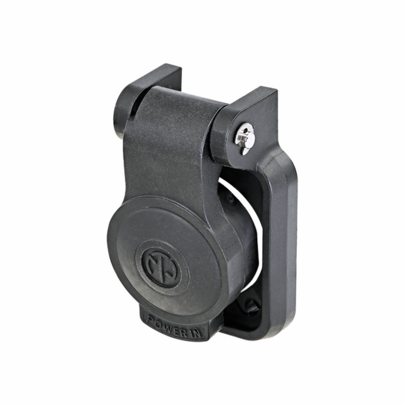

NSSC-1

Sealing self-closing cap D for powerCON receptacle
