NP2C
neutrik-fr / Produits / NP2C

NP2C

Download Data Sheet

*DISCONTINUED* Please see successor NP2X

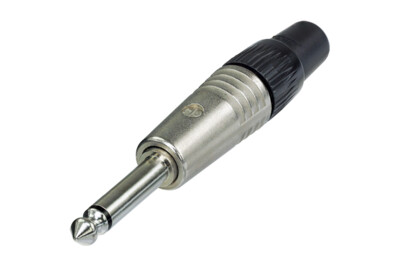

2 pole 1/4" professional phone plug, Nickel housing, Nickel contacts

Professional phone plug with robust metal shell and chuck type strain relief.

Features & Benefits
  • Rugged diecast metal shell
  • Chuck type strain relief for optimum cable protection
  • Precision machined one-piece contacts - avoid hook up of tip contact
  • Meets all prevailing standards
Downloads
np2c-2
pdf - 40.82 KB
np2c-3
dxf - 15.86 KB
phone-plugs-np_c
pdf - 3.3 MB
02 Neutrik PG EN - Section Plugs & Jacks - 202110-V24
pdf - 6.12 MB

Technical Information

Product
Title NP2C
Connection Type Plug
Gender male
Electrical
Contact resistance depends on mating connector mΩ
Dielectric strength 1 kVdc
Insulation resistance > 2 GΩ (initial)
Rated current per contact depends on mating connector A
Rated voltage < 50 V
Mechanical
Cable O.D. 4 - 7 mm
Lifetime > 1000 mating cycles
Wiresize 1 mm²
Wiresize 18 AWG
Wiring Solder contacts
Material
Bushing Polyacetal (POM) + PU
Contact plating 2 µm Ni (Su)
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA 6.6 30 % GR)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Strain relief Polyacetal (POM)
Environmental
Standard compliance IEC 60603-11 / EIA RS-453
Solderability Complies with IEC 68-2-20
Temperature range -20 °C to +65 °C
Accessories
audio
BSP-*

*** DISCONTINUED ***
Colored boots for C-Series

audio
PCR-*

Colored rings with flat label surface for C-Series
