NP2X
neutrik-fr / Produits / NP2X

NP2X

Download Data Sheet

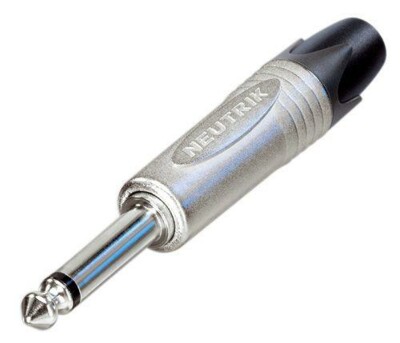

1/4" professional phone plug, 2 pole, nickel contacts, nickel shell

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch).

The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.

The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

Features & Benefits
  • Extra slim 1/4" plug for highest packing density
  • Robust diecast shell in stylish design
  • Proven chuck type strain relief for reliable cable retention
  • Sleek design for best handling convenience
  • Precision machined one-piece contacts - avoid hook up of tip contact
Downloads
np2x-1
pdf - 33.22 KB
np2x-2
dxf - 294.89 KB
professional-phone-plugs-np_x
pdf - 755.23 KB
02 Neutrik PG EN - Section Plugs & Jacks - 202110-V24
pdf - 6.12 MB

Technical Information

Product
Title NP2X
Connection Type Plug
Gender male
Electrical
Contact resistance depends on mating connector mΩ
Dielectric strength 1 kVdc
Insulation resistance > 2 (initial) GΩ ≥ 1 GΩ (after damp heat test)
Rated current per contact depends on mating connector A
Rated voltage < 50 V
Mechanical
Cable O.D. 4 - 7 mm
Lifetime > 1000 mating cycles
Wiresize 1 mm²
Wiresize 18 AWG
Wiring Solder contacts
Material
Bushing Polyacetal (POM) + PU
Contact plating 2 µm Ni (Su)
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA 6.6 30 % GR)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Strain relief Polyacetal (POM)
Environmental
Standard compliance IEC 60603-11 / EIA RS-453
Solderability Complies with IEC 68-2-20
Temperature range -20 °C to +65 °C
Accessories
audio
BPX-*

Colored boots for PX-Series

BPX-L

Large bushing with chuck type strain relief for large cable diameters for PX-Series

audio
HTPXS

Hand tool to hold the barrel of the PX series while the boot is tightened.

audio
HTXP

Hand tool for tightening the bushing of the XLR XX series, Plug PX series and etherCON CAT6 series.

audio
PXR-*

Colored rings with flat label surface for PX-Series
