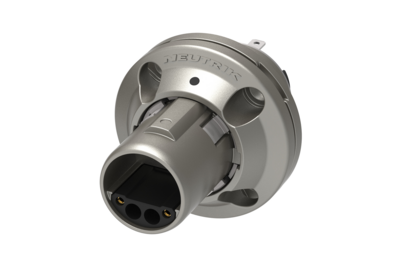

NO2MW-XP
Male chassis connector with ruggedized anticorrosive plating, 4 crimp contacts, 1 XB2 feedthrough socket and 1 shell ground contact for SMPTE cable shield. Waterproof acc. to protection class IP68 in mated condition with sealing kit SCXP-M.
The chassis connector acts as a feedthrough allowing simplified installations by connecting a XB2 patch cable on the rear. The chassis cut-out has the same size as common standard broadcast cut-outs and is therefore simple to integrate into existing systems.

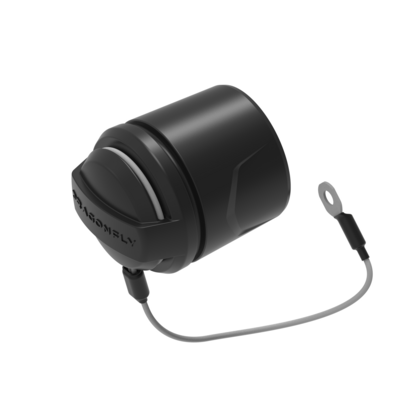

Additional lockable dirt and dust protection: SCNO2MW-XP sealing cover.
Now available!
Features & Benefits
- Suggested OEM equipment connector with common broadcast cut-out
- Designed as feedthrough for easy repair and replacement
- Improved guiding nose for safe and correct connection
- Suitable for indoor (studio) and outdoor (OB-Truck) camera links according to SMPTE Standard
- Ruggedized and dirt protected hybrid feedthrough connection system
- 1 MPO cut-out for XB2 patch cord
- 2 signal contacts
- 2 power contacts
- 1 ground contact - IP68 in mated condition with SCXP-M
Downloads
st-no2mw-xp
pdf - 209.16 KB
st-no2mw-xp
dxf - 1.69 MB
d-no2mw-xp
stp - 2.97 MB
BDA 567 - opticalCON DRAGONFLY Chassis Connector - Handling Instruction
pdf - 1.74 MB
DRAGONFLY Business Case - Sales Comparison
vnd.openxmlformats-officedocument.spreadsheetml.sheet - 38.58 KB
NTP11 V2 - opticalCON DRAGONFLY
pdf - 2.28 MB
NEUTRIK_DRAGONFLY_Application Instruction 202206
pdf - 2.79 MB
BDA 599 V1 - opticalCON DRAGONFLY Contact Crimping
pdf - 310.34 KB
BDA 569 V2 - opticalCON DRAGONFLY - Chassis Sealing KIT
pdf - 22.89 MB
NEUTRIK_DRAGONFLY-brochure-NF25V8-202206
pdf - 1.85 MB
Certificate_CB_SE-108042M1
pdf - 68.9 KB
Declaration of Conformity CE
pdf - 408.38 KB
UKCA Declaration of Conformity _DRAGONFLY
pdf - 216.22 KB
Technical Information
| Product | |
|---|---|
| Title | NO2MW-XP |
| Gender | male |
| Electrical | |
|---|---|
| Contact resistance | < 7 mΩ |
| Insulation resistance | > 10 GΩ (initial) |
| Mains | 240V AC / 10A / 50Hz 120V AC / 10A / 60Hz 300V DC / 7A |
| Sense | 42V AC peak / 1-3A / ≤1kHz 60V DC / 1-3A |
| Mechanical | |
|---|---|
| Insertion force | < 45 N |
| Withdrawal force | < 45 N |
| Lifetime (typ.) | 10'000 mating cycles |
| Locking force | 900 N |
| Locking device | Push-Pull |
| Mounting direction | Front mounting |
| Chassis shape | Common standard Broadcast cut-out |
| Wiresize (power) | max. 16 AWG |
| Wiresize (sense) | max. 24 AWG |
| Material | |
|---|---|
| Contacts | Brass |
| Insert | Polyetherimide and Polycarbonate (PEI+PC) |
| Shell | Zinc diecast and Polyoxymethylen |
| Shell plating | Nickel |
| Environmental | |
|---|---|
| Temperature range | -40 °C to +75 °C |
| Optical | |
|---|---|
| Insertion loss | Typ. 0.6 dB per connection / Max. 1.0 dB per connection |
| Optical connector | XB2 Feedthrough |
