NO2FW-XP
neutrik-fr / Produits / Systeme fibre optique opticalCON® / opticalCON® DRAGONFLY / opticalCON® DRAGONFLY Chassis / NO2FW-XP

NO2FW-XP

Download Data Sheet

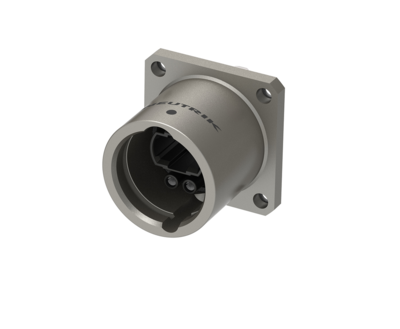

Female chassis connector with ruggedized anticorrosive plating, 4 crimp contacts, 1 XB2 feedthrough socket and 1 shell ground contact for SMPTE cable shield. Waterproof acc. to protection class IP68 in mated condition with sealing kit SCXP-F.

The chassis connector acts as a feedthrough allowing simplified installations by connecting a XB2 patch cable on the rear. The chassis cut-out has the same size as common standard broadcast cut-outs and is therefore simple to integrate into existing systems.

Additional dirt and dust protection: SCNO2FW-XP sealing cover.

Now available!

Features & Benefits
  • Suggested OEM equipment connector with common broadcast cut-out
  • Designed as feedthrough for easy repair and replacement
  • Improved guiding nose for safe and correct connection
  • Suitable for indoor (studio) and outdoor (OB-Truck) camera links according to SMPTE Standard
  • Ruggedized and dirt protected hybrid feedthrough connection system
    - 1 MPO cut-out for XB2 patch cord
    - 2 signal contacts
    - 2 power contacts
    - 1 ground contact
  • IP68 in mated condition with SCXP-F
Downloads
st-no2fw-xp
pdf - 150.7 KB
st-no2fw-xp
dxf - 1.2 MB
d-no2fw-xp
stp - 696.39 KB
BDA 567 - opticalCON DRAGONFLY Chassis Connector - Handling Instruction
pdf - 1.74 MB
DRAGONFLY Business Case - Sales Comparison
vnd.openxmlformats-officedocument.spreadsheetml.sheet - 38.58 KB
NTP11 V2 - opticalCON DRAGONFLY
pdf - 2.28 MB
NEUTRIK_DRAGONFLY_Application Instruction 202206
pdf - 2.79 MB
BDA 599 V1 - opticalCON DRAGONFLY Contact Crimping
pdf - 310.34 KB
BDA 569 V2 - opticalCON DRAGONFLY - Chassis Sealing KIT
pdf - 22.89 MB
NEUTRIK_DRAGONFLY-brochure-NF25V8-202206
pdf - 1.85 MB
Certificate_CB_SE-108042M1
pdf - 68.9 KB
Declaration of Conformity CE
pdf - 408.38 KB
UKCA Declaration of Conformity _DRAGONFLY
pdf - 216.22 KB

Technical Information

Product
Title NO2FW-XP
Gender female
Electrical
Contact resistance < 7 mΩ
Insulation resistance > 10 GΩ (initial)
Mains 240V AC / 10A / 50Hz
120V AC / 10A / 60Hz
300V DC / 7A
Sense 42V AC peak / 1-3A / ≤1kHz
60V DC / 1-3A
Mechanical
Insertion force < 45 N
Withdrawal force < 45 N
Lifetime (typ.) 10'000 mating cycles
Locking force 900 N
Locking device Push-Pull
Mounting direction Front mounting
Chassis shape Common standard Broadcast cut-out
Wiresize (power) max. 16 AWG
Wiresize (sense) max. 24 AWG
Material
Contacts Brass
Insert Polyetherimide and Polycarbonate (PEI+PC)
Shell Zinc diecast and Polyoxymethylen
Shell plating Nickel
Environmental
Temperature range -40 °C to +75 °C
Optical
Insertion loss Typ. 0.6 dB per connection / Max. 1.0 dB per connection
Optical connector XB2 Feedthrough
Accessories
dragonfly

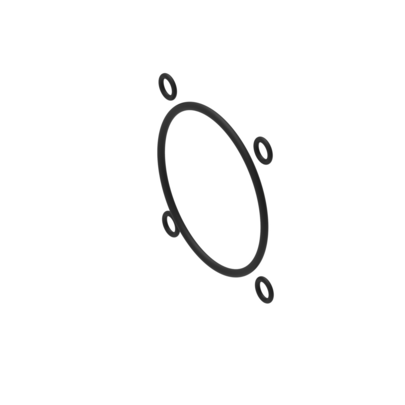

SCXP-F
