mediaCON
neutrik-fr / Produits / NMK-20U-*

NMK-20U-*

Download Data Sheet

The reversible USB Type-C cable with over molded flex relief and rugged cable fit and lock with NMC-* Chassis.

*The cables are available in 0.5 m and 1 m cable length.

Features & Benefits
  • Guaranteed performance up to 10 Gb/s (USB 3.1 Gen.II compatibility)*

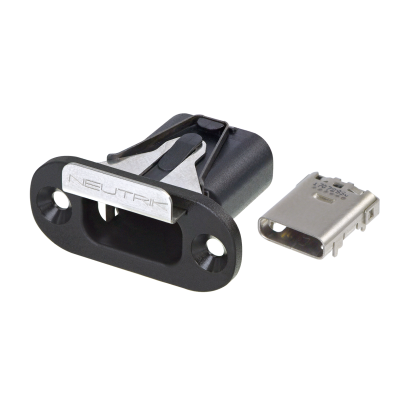

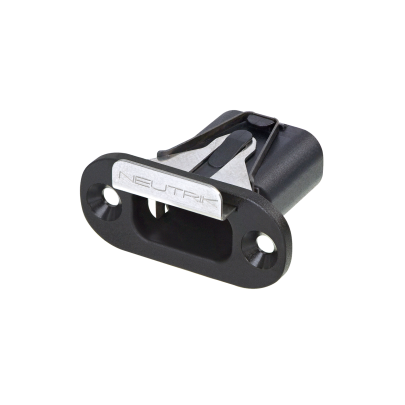

  • Push Pull mating design provides secure locking system if mated with NMC-*
  • Reversible USB-C housing Provide power up to 100 W (@5A/20V)
  • Shielded connection – high noise immunity and EMI protection
  • Mates with conventional USB-C receptacles
Downloads
nmk-20u-1
stp - 2.53 MB
Drawing NMK-20U-1
pdf - 91.58 KB
ntp10---mediacon-usb-c-cable
pdf - 933.54 KB
NEUTRIK_White Paper-USB_Type_C-NWP09- V2
pdf - 1.48 MB

Technical Information

Product
Title NMK-20U-*
Description PLEASE NOTE: Preference will vary depending on your additional hardware and software components and configurations.
Electrical
Rated current per contact 5 A
Rated voltage 20 V
Insulation resistance 10 MΩ
Conductor resistance 3 Ω
Transmission Performance 100 Watt
Mechanical
Lifetime 10'000 mating cycles
Locking force 50 N
Locking device Latch lock
Material
Contact plating Au
Contacts Brass (CuZn37)
Cable Jacket Type PVC - Polyvinyl Chloride
Shell TPE - Thermoplastic Elastomer
Environmental
Flammability UL 94 HB
Transmission performance USB 3.1 Gen II; USB 3.2
Temperature range -25 °C to +85 °C
Environmentally Compliant RoHS and Halogen Free
