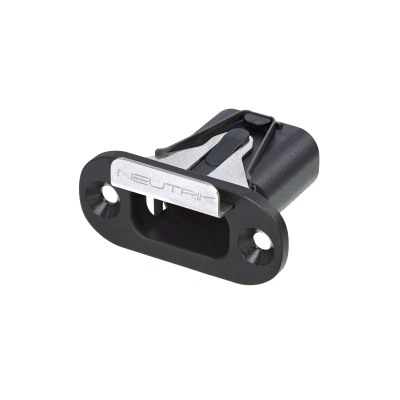

NMC-C
Lockable USB Type-C chassis
Features & Benefits
- Push Pull mating design provides secure locking system if mated with NMK-20U*
- Reversible USB-C housing
- Front and rear side mountable
- Guiding housing for better protection of receptacles
- USB receptacle not in scope of delivery
Downloads
Technical Information
| Product | |
|---|---|
| Title | NMC-C |
| Electrical | |
|---|---|
| Transmission Performance | null |
| Mechanical | |
|---|---|
| Lifetime | 10'000 mating cycles |
| Locking force | 50 N |
| Locking device | Latch lock |
| Material | |
|---|---|
| Shell | Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR) |
| Environmental | |
|---|---|
| Flammability | UL 94 HB |
| Standard compliance | USB 3.1 Gen II; USB 3.2 |
| Temperature range | -25 °C to +85 °C |
