NL4MPXX-UC

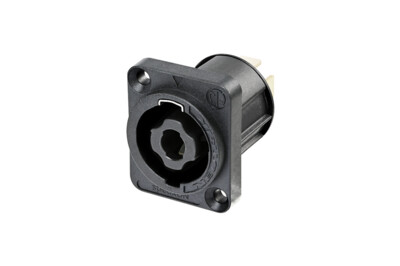

4 pole male chassis connector for 30 A rms continuous. Black D-size flange, countersunk thru holes, 1/4" flat tabs (termination e.g. with Faston tab Tyco part # 41829

This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

Features & Benefits

IEC 61984 certified, IEC 6236/-1 compliant
Glass reinforced V-0 materials – extremely robust and durable
Precise keyway for secure mating with metal insert in locking area

Downloads

20003482_-_NL4MPXX-UC

pdf - 195.66 KB

20003482_-_NL4MPXX-UC

dxf - 889.83 KB

30008878_-_NL4MPXX-UC

stp - 6.8 MB

CB Certificate SE-103879

pdf - 68.98 KB

03 Section speakON PG EN 202202-V23

pdf - 5.55 MB

BDA 591 V1 - Assembly recommendation of speakON chassis connector

pdf - 318.08 KB

Certificate_ENEC_40052110 (2024-06-11)

pdf - 307.3 KB

Links

Intertek Certificate UL-1977 REC Intertek Certificate CAN/CSA-C22.2 No. 182.3 REC

Technical Information

Product
Title	NL4MPXX-UC
Gender	male

Electrical
Contact resistance	≤ 2 mΩ
Dielectric strength	2.8 kVac
Insulation resistance	>0.1 GΩ (after dampheat)
Rated current per contact	30 A rms continuous
Rated voltage	250 V ac
Attention	speakON is NOT to be used as an AC mains or power supply connector!

Mechanical
Lifetime	> 5000 mating cycles
Termination	¼" flat tabs
Locking device	Quick Lock
Mounting direction	Rear (e.g. MFD) / front mounting
Chassis shape	D
Layout	standard hole position, thru holes
