NL4MD-V-S
neutrik-fr / Produits / NL4MD-V-S

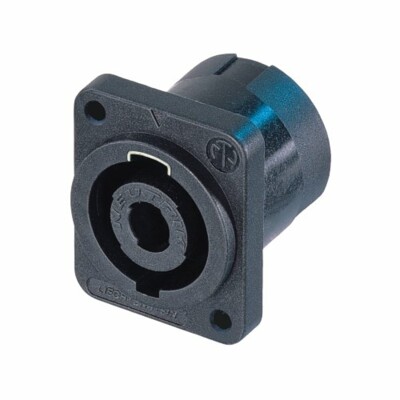

NL4MD-V-S

Download Data Sheet

*** DISCONTINUED ***
Direct replacement / successor. NL4MDXX-V

4 pole chassis connector, black D-size flange, self tapping screw holes (A-screw), switchable version of NL4MD-V with 8 vertical PCB contacts (4 switching contacts). Switch is closed unless mating of speakON cable connector. This chassis connector is not airtight.

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

Features & Benefits
  • NCC (Normally Closed Contact)
  • Glass reinforced materials make it extremely robust and dependable
  • Precise keyway for secure mating
  • Accurate twist lock latching system
  • Metal insert in locking area
Downloads
nl4md-v-s-2
pdf - 68.86 KB
nl4md-v-s-3
dxf - 539.93 KB
03 Section speakON PG EN 202202-V23
pdf - 5.55 MB
speakon-wiring-suggestion
pdf - 342.87 KB
speakon-flange-and-fastening-layout
pdf - 130.14 KB
À gauche
UL Certificate (ECBT2.E135070)

Technical Information

Product
Title NL4MD-V-S
Connection Type speakON
Gender male
Electrical
Contact resistance ≤ 3 mΩ (after lifetime)
Dielectric strength 4 kVdc (peak)
Insulation resistance > 1 GΩ (after dampheat)
Rated current per contact 20 A rms continuous
Rated current per contact 40 A audiosignal, duty cycle 50 %
Rated voltage 250 V ac
Attention speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Lifetime > 5000 mating cycles
Wiresize
Wiring vertical PCB mount
Locking device Quick Lock
Chassis shape D
Layout standard hole position, self tapping screw holes (A-Screw)
Material
Contact plating 4 µm Ag
Contacts Bronze (CuSn6)
Shell Polyamide (PA 6 30 % GR) black
Environmental
Flammability UL 94 HB
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
Accessories
audio
A-SCREW-1-8

Black self tapping PLASTITE® screw 2.9 x 1.05 tri-rondular configuration, 8 mm long, panhead

CAS-DUMMY

The dummyPLUG case includes a mixed assortment of dummyPLUGs

audio
NDL

The dummyPLUG NDL for all 4 pole Neutrik speakON and powerCON chassis enables you to simplify cabling.

audio
SCDX

Hinged cover

audio
SCL

Dust protection cover for most speakON and powerCON chassis connectors

SCCD-W

Spring-loaded sealing cover

SCD-W

Universal sealing cap

E-SCREW1-12NI

Nickel self-tapping PLASTITE® screw 2.9 x 1.06 tri-rondular configuration, 12 mm long, countersunk

E-SCREW1-12 B

Black self-tapping PLASTITE®* screw 2.9x1.06 tri-rondular configurations, 12 mm long, countersunk *PLASTITE® is a registered trademark of SFS Unimarket
