NL4MD-V-R

*** DISCONTINUED ***
Direct replacement / successor: NL4MDXX-V

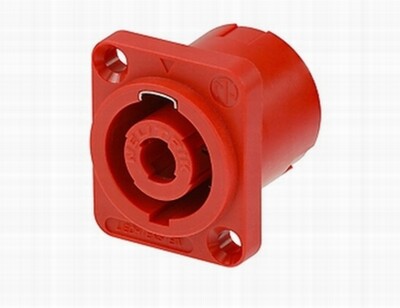

4 pole chassis connector, red D-size flange, countersunk thru holes, vertical PCB mount. The red color is a differentiating factor to indicate for instance bridging or crossover connections.

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

Features & Benefits

Current rating 30 A rms
Glass reinforced materials make it extremely robust and dependable
Precise keyway for secure mating
Accurate twist lock latching system
Metal insert in locking area
Airtight design - optimized for speaker applications

Downloads

03 Section speakON PG EN 202202-V23

pdf - 5.55 MB

speakon-wiring-suggestion

pdf - 342.87 KB

speakon-flange-and-fastening-layout

pdf - 130.14 KB

Technical Information

Product
Title	NL4MD-V-R
Type	Chassis
Gender	male

Electrical
Contact resistance	≤ 3 mΩ (after lifetime)
Dielectric strength	4 kVdc (peak)
Insulation resistance	> 1 GΩ (after dampheat)
Rated current per contact	30 A rms continuous
Rated current per contact	40 A audio signal, duty cycle 50%
Rated voltage	250 V ac
ATTENTION	speakON is NOT to be used as an AC mains or power supply connector!
