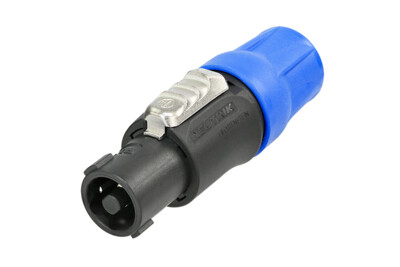

NL4FC
neutrik-fr / Produits / NL4FC

NL4FC

Download Data Sheet

*** DISCONTINUED ***
Direct replacement / successor:  NL4FXX-W-S (cable O.D. 6 to 12 mm) and NL4FXX-W-L (cable O.D. 10 to 16 mm)

4 pole cable connector, chuck type strain relief

The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.

Features & Benefits
  • Up to 30 A rms current rating
  • Reliable and robust, easy and fast to assemble
  • Cable strain relief for 6 - 15 mm cable O.D.
  • Accurate and dependable twist lock latching system "Quick Lock"
  • Glass reinforced material for insert and housing, long-lasting and dependable
  • User friendly latch design for easy handling
  • Unique Neutrik chuck type strain relief
Downloads
03 Section speakON PG EN 202202-V23
pdf - 5.55 MB
BDA 450 V2 - speakON NL4FC
pdf - 2.36 MB
canadian-standards-association
pdf - 65.27 KB
speakon-wiring-suggestion
pdf - 342.87 KB
st-nl4fc
pdf - 214.48 KB
st-nl4fc
dxf - 1.84 MB
nl4fc
stp - 6.44 MB
CB_Cert_SE-100963A1M1
pdf - 83.27 KB
Certificate ETL_104216254ATL-001A_240425_ATM (2024-04-25)
pdf - 117.47 KB

Technical Information

Product
Title NL4FC
Connection Type speakON
Gender female
Electrical
Contact resistance ≤ 3 mΩ (after lifetime)
Dielectric strength 4 kVdc (peak)
Insulation resistance > 1 GΩ (after dampheat)
Rated current per contact 30 A rms continuous
Rated current per contact 40 A audiosignal, duty cycle 50 %
Rated voltage 250 V ac
Attention speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Cable O.D. 6 - 15 mm
Cable retention ≥ 220 N (subject to cable O.D. and material)
Lifetime > 5000 mating cycles
Wiresize 4 mm²
Wiresize 12 AWG
Wiring screw type terminals or soldering
Locking device Quick Lock (latch)
Material
Contact plating 4 µm Ag
Contacts Brass (CuZn39Pb3)
Insert PBTP 20 % GR
Locking element Zinc diecast (ZnAl4Cu1)
Shell Polyamide (PA 6 30 % GR)
Strain relief Polyacetal (POM)
Environmental
Flammability UL 94 V-0
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
Accessories

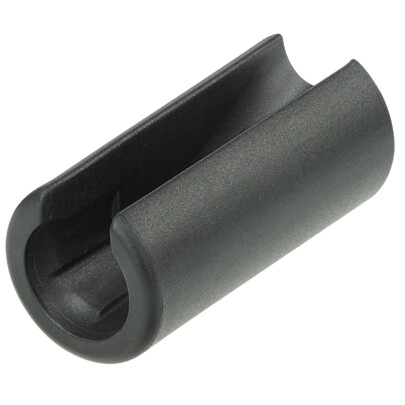

HTFAC

Hand tool for tightening the bushing of the speakON NL4FC and the powerCON 20A cable connectors.

audio
NL4MMX

Lockable 4 pole speakON adapter
