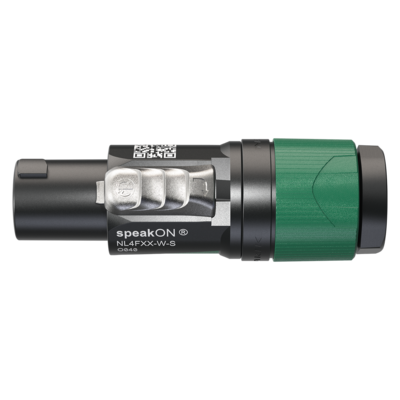

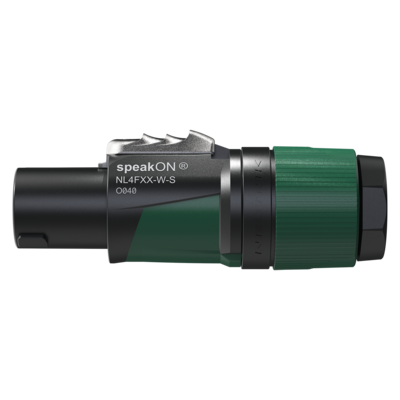

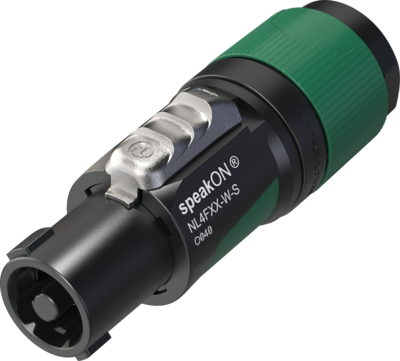

NL4FXX-W-S--view-45-degree NL4FXX-W-S-V-view-front NL4FXX-W-S--view-top
NL4FXX-W-S--view-45-degree
NL4FXX-W-S-V-view-front
NL4FXX-W-S--view-top
1/3
neutrik-fr / Produits / Connecteurs haut-parleur speakON® / Fiche speakON® / FXX series / NL4FXX-W-S

NL4FXX-W-S

Download Data Sheet

Fiche 4 poles speakON avec borniers à vis et systeme de retention de cable pour des cordons de diametre 6mm à 12mm



Les connecteurs SpeakON constituent la norme industrielle pour les connexions de haut-parleurs. Cette série de produits propose des connecteurs de câbles extrêmement fiables et robustes avec un système de verrouillage par rotation éprouvé.

Les connecteurs de câble SpeakON comportent des contacts solides avec des bornes à vis comprenant une protection contre les fils toronnés



Caractéristiques et avantages
  • Courant nominal jusqu'à 37A par contact
  • Systeme de verrouillage et resistance à la traction Neutrik unique pour les diamètres de câble de 6 mm à 12 mm
  • Certifié IEC 61984 donc accepté comme composant d'équipement selon. selon CEI 62368-1
  • Norme de qualité NEUTRIK supérieure, extrêmement robuste et fiable
  • Facile à assembler car le serre-câble se verrouille mécaniquement avec l'insert et s'aligne avec le boîtier
  • Systeme de verrouillage simple par rotation
  • Conception ergonomique avec boîtier moulé antidérapant à deux composants
  • Protection améliorée contre les torsions grâce à un manchon à deux composants
telechargement
NL4FXX-W-S
stp - 5.85 MB
NL4FXX-W-S
pdf - 655.52 KB
NL4FXX-W-S
dxf - 3.4 MB
BDA 638 V4 - speakON NL2FXX-W-x & NL4FXX-W-x
pdf - 5.33 MB
Certificate_CB_DE1-66864-A1
pdf - 102.66 KB
Certificate_UL_UL-CA-2237189-0 (2022-10-06)
pdf - 211.3 KB
Certificate_UL_UL-US-2238584-0 (2022-10-06)
pdf - 213.02 KB
Certificate_ENEC_40052110 (2024-06-11)
pdf - 307.3 KB
Certificate ETL_104216254ATL-001A_240425_ATM (2024-04-25)
pdf - 117.47 KB

Technical Information

Product
Title NL4FXX-W-S
Connector series speakON 4 pole
Electrical
Contact resistance ≤ 2 mΩ
Dielectric strength 2.8 kVac
Insulation resistance > 10 GΩ (initially)
Number of electrical contacts 4
Rating Europe IEC 61984: 37 A 250 V AC
Rating USA UL1977: 35 A 250 V AC
Rating Canada CSA C22.2 No.182.3: 24 A 250 V AC
ATTENTION: This product is strictly not intended for use as an AC mains or power supply connector!
CAUTION: NOT FOR INTERRUPTING CURRENT
Mechanical
Cable O.D. 6 – 12 mm
Lifetime typically 5’000 mating cycles
Wiresize (mm²) 1.5 – 4 mm²
Wiresize (AWG) 17 – 11 AWG
Locking device Twist lock
Termination screw type terminals
Material
Contact plating Ag
Contacts Copper Alloy
Insert Polyamide (PA6.6)
Locking element Zinc diecast
Shell Polyamide (PA6) / TPE
Strain relief Polyketone
Bushing Polypropylene / TPE
Environmental
Temperature range -33 °C to +80 °C
Protection class IP20
Flammability acc. to UL94 V-0
Accessories
HTLACB

Hand tool for tightening the bushing of the powerCON TRUE1 TOP, FXX and speakON FXX series

HTLACA View 2.png
HTLACA

Hand tool for tightening the bushing of the powerCON TRUE1 TOP, FXX and speakON FXX series

audio
speakCON_XXS_persp front reihe_RGB_WEB.png
XXS-* and XXL-*

Colored bushing for speakON NL4FXX-W* and NL2FXX-W-S. This Products are only to use with Neutrik speakON from the FXX series.

Assembly instruction video for speakON FXX
