neutrik-fr > Produits > Professional Power Cables > NKPHx-A1A1
NKPH1-A1A1_Picture_01

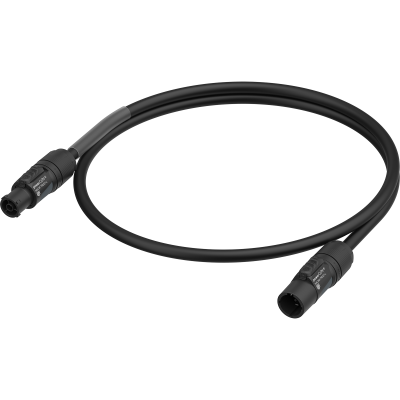

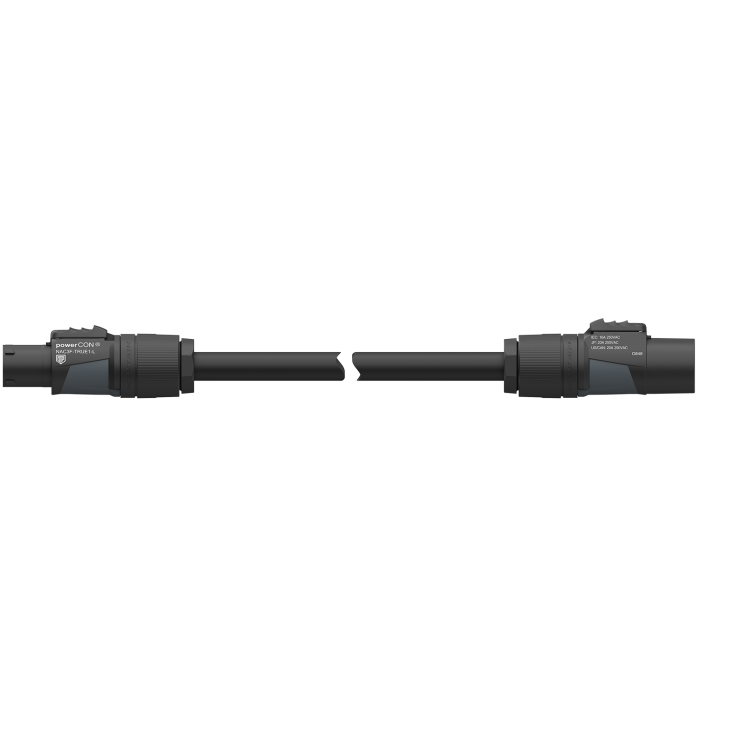

NKPHx-A1A1

NEUTRIK® outdoor cables with powerCON® TRUE1® TOP and High quality H07RN cable. Ideally suited for stages and events.

Download Data Sheet
Le choix des thèmes
Features & Benefits Downloads Article Variations
Download Data Sheet

Features & Benefits

  • Flexible Elastomer insulation and sheath
  • Oil resistant
  • Flame retardant cable according to IEC / EN 60332-1-2
  • Connectors with Breaking Capacity (CBC)
  • Flame retardant connector according to UL94 V-0
  • IP65 and encloser type 4 rated when intermated with NEUTRIK® powerCON® TRUE1® TOP

Downloads

  • Drawing NKPH1-A1A1
  • Drawing NKPH1-A1A1

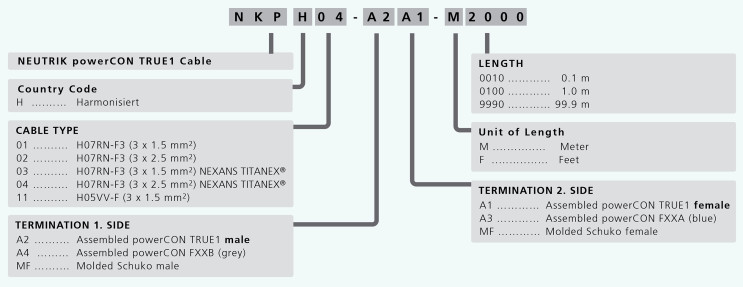

Article Variations

Article name Details Order code
NKPH1-A1A1-M001 1 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 1027564
NKPH1-A1A1-M002 2 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 1027565
NKPH1-A1A1-M005 5 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 1027566
NKPH1-A1A1-M010 10 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 1027567
NKPH1-A1A1-M015 15 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 1027568
NKPH1-A1A1-M020 20 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 1027569
NKPH2-A1A1-M001 1 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 1027570
NKPH2-A1A1-M002 2 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 1027571
NKPH2-A1A1-M005 5 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 1027572
NKPH2-A1A1-M010 10 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 1027573
NKPH2-A1A1-M015 15 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 1027574
NKPH2-A1A1-M020 20 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP65 1027575
