NJ3FP6C
neutrik-fr / Produits / NJ3FP6C

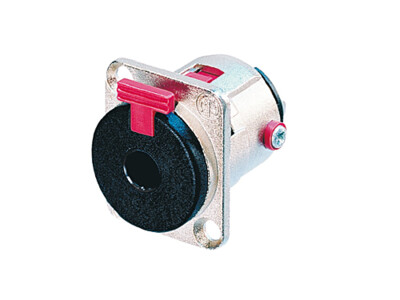

NJ3FP6C

Download Data Sheet

Locking 1/4" phone jack, D-size shell, nickel metal housing and silver contacts

The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab. Standard D size front panel appearance.

Features & Benefits
  • Securely locking chassis jack
  • Mates with all mono and stereo plugs specified acc. EIA RS-453 (A-gauge)
  • Dimensionally compatible with D Series (31 x 26 mm)
  • Solder terminals
Downloads
nj3fp6c-1
pdf - 49.63 KB
nj3fp6c-2
dxf - 298.73 KB
nj3fp6c-3
stp - 114.34 KB
02 Neutrik PG EN - Section Plugs & Jacks - 202110-V24
pdf - 6.12 MB
jacks---circuits
pdf - 1.56 MB

Technical Information

Product
Title NJ3FP6C
Connection Type Jack
Gender female
Electrical
Contact resistance < 6 mΩ (initial)
Dielectric strength 1 kVdc
Insulation resistance ≥ 1 GΩ @ 500 V dc
Rated current per contact 10 A
Mechanical
Insertion force < 30 N
Withdrawal force < 20 N
Lifetime > 10000 mating cycles
Locking force > 80 N
Wiresize 1 mm²
Wiresize 18 AWG
Wiring Solder contacts
Locking device Latch lock
Mounting direction Front mounting
Chassis shape D
Material
Contact plating 2 µm Ag
Contacts Copper alloy (CuSn6) (Ground)
Insert Polyamide (PA 6.6 30 % GR) UL94 V-0
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Strain relief Polyacetal (POM)
Environmental
Standard compliance EIA RS 453, IEC 60603-11
Solderability Complies with IEC 60068-2-20
Temperature range -25 °C to +70 °C
Accessories
CAS-DUMMY

The dummyPLUG case includes a mixed assortment of dummyPLUGs

audio
DSS-*

Colored lettering plate for D-shape-connectors

MFD

M3 mounting frame

audio

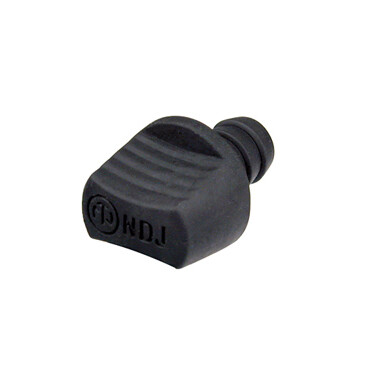

NDJ

The dummyPLUG NDJ for Neutrik 1/4'' Jacks enables you to simplify cabling.

audio
SCDR

Soft plastic cover for the rear ends of several D-size chassis connectors.

audio
SCDX

Hinged cover

SCCD-W

Spring-loaded sealing cover
