neutrik-fr / Produits / NF2C-B/2

NF2C-B/2

Download Data Sheet

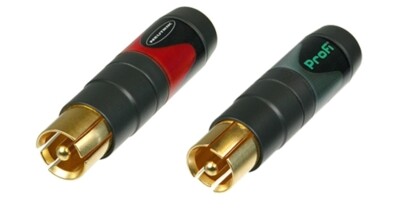

Pair of professional `Phono Plug` (`RCA`- or `CINCH`- type) - marked red and black.

Including 2 x 2 strain reliefs for cable O.D. 3.0 mm to 7.3 mm. Additional strain relief for cable O.D. up to 8.0 mm available as accessory.

Features & Benefits
  • Makes ground before signal contact and breaks signal before ground
  • No more disturbing noise and broken speaker cones
  • Precisely machined to our demanding quality standards
  • Neutrik unique chuck type strain relief
  • Gold plated contacts
  • Sleek barrel with soft touch surface and coloured shrink sleeve
  • Improved ground solder lug for ease soldering
Downloads
02 Neutrik PG EN - Section Plugs & Jacks - 202110-V24
pdf - 6.12 MB
nf2c-1
dxf - 339.24 KB
BDA 236 V3 - Neutrik Profi NF2C-B2
pdf - 2.13 MB
nf2c
pdf - 27.52 KB

Technical Information

Product
Title NF2C-B/2
Connection Type Profi
Gender male
Electrical
Capacitance between contacts ≤ 7 pF
Contact resistance >10G mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 5 GΩ
Rated current per contact depends on mating connector / A
Rated voltage < 50 V
Mechanical
Cable O.D. 3.0 - 7.3 mm
Lifetime > 2000 mating cycles
Wiresize 1,5 mm²
Wiresize 16 AWG
Wiring Solder contacts
Material
Contact plating 5 µm Au over 5 µm Ni
Contacts Brass (CuZn39Pb3)
Insert PBTP 20 % GR
Shell Brass (CuZn39Pb3)
Strain relief Polyacetal (POM)
Environmental
Flammability UL 94 HB
Standard compliance IEC 601-14
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
Accessories
audio

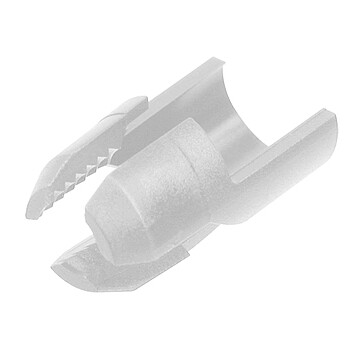

CNF-9

Chuck for cable O.D. up to 8.0 mm
