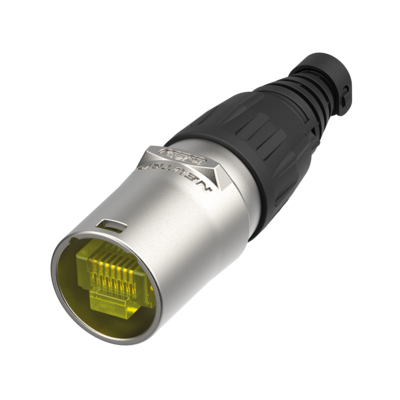

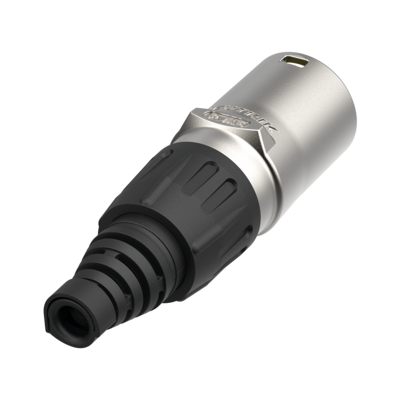

NE8MX
RJ45 cable connector carrier for pre-assembled RJ45 plugs consists of nickel shell, bushing and boot. Packed with two cable protection elements for cable diameter up to 8 mm. Cable connector carrier does not include a RJ45 plug.
The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution.
ATTENTION: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.
Features & Benefits
- The RJ45 system for harsh and demanding environment
- Cable connector carrier accepts the most common RJ45 plugs (see list at downloads)
- Rugged diecast shell and unique chuck type strain relief
- Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ45 connectors
- Flat spot on the housing for better orientation
- Allows assembly of pre-assembled conventional RJ45 cables
- Accessories include color coded boots in 9 standard colors
Downloads
Technical Information
| Product | |
|---|---|
| Title | NE8MX |
| Gender | male |
| IMPORTANT | Cable connectors do not include RJ45 plug. RJ45 cable assembly must be provided by end user! |
| Mechanical | |
|---|---|
| Cable O.D. | 4.5 mm - 8 mm |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Material | |
|---|---|
| Boot | Polyamide (PA 6) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Strain relief | Polyacetal (POM) |
| Environmental | |
|---|---|
| Temperature range | -30 °C to +80 °C |
Accessories
audio
BSE-*
Colored bushings for NE8MC and NE8MC-B
audio

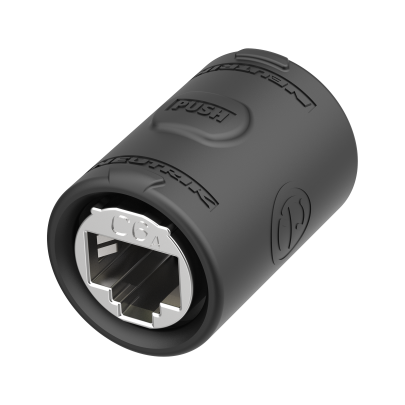

NE8FFX6-W
Coupleur Etanche Ethercon catégorie 6a pour rallonger les câbles
audio
HTX
Hand tool for tightening the bushing of the XLR X, XCC, FX-SPEC series and etherCON cable connector carrier series as well as the XLR XX and etherCON CAT6 series.
